Technical Specifications

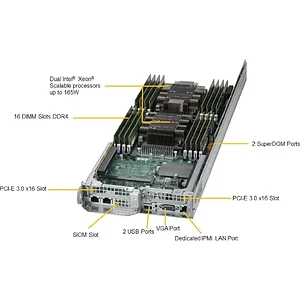

<b>Motherboard(Four per System)</b><br> Super X11DPT-PS<br> <b>Processor/Cache (per Node)</b><br> <b>CPU</b><br>Dual Socket P (LGA 3647)<br> Intel Xeon Scalable Processors, Dual UPI up to 10.4GT/s<br> Support CPU TDP 70-165W<br> <b>Cores</b><br>Up to 28 Cores with Intel HT Technology <br> <b>Note</b><br>Please contact Supermicro Technical Support for supporting conditions of high power (TDP 150W and above) or high base frequency (3.0 GHz and above) processors.<br> <b>System Memory (per Node)</b><br> <b>Memory Capacity</b><br>16 DIMM slots<br> Up to 2TB ECC 3DS LRDIMM, 2TB ECC RDIMM, DDR4 up to 2666MHz<br> <b>Memory Type</b><br>2666/2400/2133MHz ECC DDR4 SDRAM<br> <b>On-Board Devices (per Node) </b><br> <b>Chipset</b><br>Intel C621 chipset<br> <b>SAS</b><br>Broadcom 3008 SAS3 (12Gbps) controller, RAID 0, 1, 10 support<br> <b>Network Controllers</b><br>Barebones and Complete System must have at least one SIOM or networkcard installed per node<br> <b>IPMI</b><br>Support for Intelligent Platform Management Interface v.2.0<br> IPMI 2.0 with virtual media over LAN and KVM-over-LAN support<br> <b>Graphics</b><br>ASPEED AST2500 BMC <b>Input / Output (per Node) </b><br> <b>SAS</b><br>6 SAS3 (12Gbps) ports<br> <b>LAN</b><br>1 RJ45 Dedicated IPMI LAN port<br> <b>USB</b><br>2 USB 3.0 ports (rear) <br> <b>VGA</b><br>1 VGA port<br> <b>Serial Port / Header</b><br>1 Fast UART 16550 port / 1 Header (internal) <br> <b>Others</b><br>2 SuperDOM support on the motherboard<br> 1 NVMe or 2 SATA M.2 (22x80/60/42 mm) support with option part: AOC-SMG3-2H8M2<br> M.2 and SuperDOM are for OS boot and they cannot coexist<br> <b>System BIOS</b><br> <b>BIOS Type</b><br>AMI 32Mb SPI Flash EEPROM<br> <b>Management</b><br> <b>Software</b><br>Intel Node Manager<br> IPMI 2.0<br> KVM with dedicated LAN<br> NMI<br> SSM, SPM, SUM<br> SuperDoctor 5<br> Watchdog<br> <b>Power Configurations</b><br>ACPI Power Management<br> <b>PC Health Monitoring</b><br> <b>CPU</b><br>Monitors for CPU Cores, Chipset Voltages, Memory. <br> 5+1 Phase-switching voltage regulator<br> <b>FAN</b><br>Fans with tachometer monitoring<br> Status monitor for speed control<br> Pulse Width Modulated (PWM) fan connectors<br> <b>Temperature</b><br>Monitoring for CPU and chassis environment<br> Thermal Control for fan connectors<br> <b>Omni-Path Fabric CPUs</b><br>Do not support<br> <b>Chassis</b><br> <b>Form Factor</b><br>2U Rackmount<br> <b>Model</b><br>CSE-217HQ+-R2K20BP3<br> <b>Dimensions and Weight</b><br> <b> Available Colors </b><br> Black<br> <b>Front Panel</b><br> <b>Buttons</b><br>Power On/Off button<br> UID button<br> <b>LEDs</b><br>Power status LED<br> HDD activity LED<br> Network activity LEDs<br> Universal Information (UID) LED<br> <b>Expansion Slots (per Node) </b><br> <b>PCI-Express</b><br>2 PCI-E 3.0 x16 Low-profile slots<br> 1 SIOM card support<br> Note: Barebones and Complete System must bundle with Network Card<br> (With only one CPU installed, SXB2 M.2 and SXB4 riser card slots not function) <br> <b>Drive Bays(per Node)</b><br> <b>Hot-swap</b><br>6 Hot-swap 2.5 inch SAS/SATA HDD trays<br> <b>System Cooling</b><br> <b>Fans</b><br>4x 40x28mm 4-pin PWM Cooling Fans<br> <b>Air Shroud</b><br>1 Air Shroud<br> <b>Power Supply</b><br> 2200W Redundant Power Supplies with PMBus<br> <b>Total Output Power and Input</b><br>1200W with Input 100-127Vac<br> 1800W with Input 200-220Vac<br> 1980W with Input 220-230Vac<br> 2090W with Input 230-240Vac<br> 2200W with Input 220-240Vac (for UL/cUL use only) <br> 2090W with Input 230-240Vdc (for CCC only) <br> <b>AC Input Frequency</b><br>50-60Hz<br> <b>Dimension (W x H x L)v</b><br>76 x 40 x 336 mm<br> <b>+12V</b><br>Max: 100A / Min: 0A (100-127Vac) <br> Max: 150A / Min: 0A (200-220Vac) <br> Max: 165A / Min: 0A (220-230Vac) <br> Max: 174.17A / Min: 0A (230-240Vac) <br> Max: 183.3A / Min: 0A (220-240Vac) <br> <b>5VSB</b><br>Max: 1A / Min: 0A<br> <b>Output Type</b><br>Backplanes (gold finger) <br> <b>Certification</b><br> UL/cUL/CB/BSMI/CE/CCC<br> Titanium Level<br> (Cert. in progress ) <br> <b>Operating Environment</b><br> <b>RoHS</b><br>RoHS Compliant<br> <b>Environmental Spec. </b><br>Operating Temperature: 10<sup>o</sup>C to 35<sup>o</sup>C (50<sup>o</sup>F to 95<sup>o</sup>F) <br> Non-operating Temperature: -40<sup>o</sup>C to 60<sup>o</sup>C (-40<sup>o</sup>F to 140<sup>o</sup>F) <br> Operating Relative Humidity: 8% to 90% (non-condensing) <br> Non-operating Relative Humidity: 5% to 95% (non-condensing) <br> <b>Item Dimension (L"xW"xH") </b><br> 34 x 33 x 11 <br> <b>Weight </b><br> 90.00<br> <b>Warranty Information </b><br> 1 Year <br>
