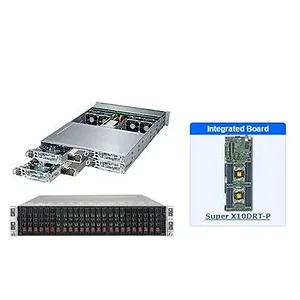

SYS-2028TP-HTR - Supermicro SuperServer 2028TP-HTR

Motherboard
Super X10DRT-P

Processor/Cache (per Node)
CPU
Intel Xeon processor E5-2600 v3 family (up to 145W TDP )
Dual Socket R3 (LGA 2011)
Cores / Cache
Up to 18 Cores / Up to 45MB Cache
System Bus
QPI up to 9.6 GT/s System Memory (per Node)
Memory Capacity
16x 288-pin DDR4 DIMM sockets
Up to 1TB ECC LRDIMM, 512GB ECC RDIMM
Memory Type
2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
RDIMM: 32GB, 16GB, 8GB, 4GB
LRDIMM: 64GB, 32GB
Memory Voltage
1.2 V
Error Detection
Corrects single-bit errors On-Board Devices
Chipset
Intel C612 Express chipset
SATA
SATA3 (6Gbps) RAID 0, 1, 5, 10
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC
Network Controllers
Intel i350-AM2 Dual Port Gigabit Ethernet
Virtual Machine Device Queues reduce I/O overhead
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics
ASPEED AST2400 BMC Input / Output (per Node)
SATA
6x SATA3 (6Gbps) ports
LAN
2x RJ45 Gigabit Ethernet LAN ports
1x RJ45 Dedicated IPMI LAN port
USB
2x USB 3.0 ports total (2x rear)
VGA
1x VGA port
Serial Port / Header
1x Fast UART 16550 port / 1 Header Form Factor
2U Rackmount

Available Colors
Black

Front Panel
Buttons
Power On/Off button
System Reset button
UID button
LEDs
Power status LED
HDD activity LED
2x Network activity LEDs
Universal Information (UID) LED Expansion Slots (per Node)
PCI-Express
1x PCI-E 3.0 x16 Low-profile slot
0 Slot
1x "0 slot" (x16)
(Both CPUs need to be installed for full access to PCI-E slots and 0 slot.) Drive Bays (per Node)
Hot-swap
6x 2.5" Hot-swap SAS/SATA HDD trays

System Cooling
Fans
4x 8cm heavy duty PWM fans with optimal fan speed control Switching Power Supply
2000W Redundant Power Supplies with I2C and PMBus
AC Input
1100W Output at 100-120V, 12.7-10.5A, 50-60Hz
1400W Output at 120-140V, 13.5-11.5A, 50-60Hz
1800W Output at 200-220V, 10.0-9.5A, 50-60Hz
1980W Output at 220-230V, 10.0-9.8A, 50-60Hz
2000W Output at 230-240V, 10.0-9.8A, 50-60Hz
5Vsb4A
I2C Remote Monitoring
FRU Data / SMBus / PMBus
Certification
Platinum Level Certified95%+ Platinum Certified System BIOS
BIOS Type
128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
Plug and Play (PnP)
APM 1.2
PCI 2.2
ACPI 1.0 / 2.0
USB Keyboard support
SMBIOS 2.3
UEFI

RoHS
RoHS Compliant Item Dimension (L"xW"xH"):
28.5 x 17.25 x 3.47

Weight:
85 lb

Warranty Information:
1 Year
