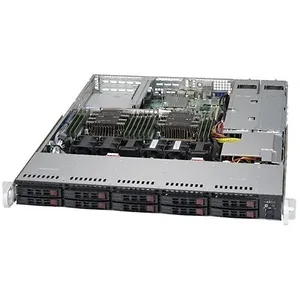

Supermicro SYS-1029P-WTRT System SYS-1029P-WT 1U Xeon LGA Socket 3647 C621 Max.1.5TB 8x2.5SAS/SATA Brown Box

Motherboard
Super X11DDW-L
Processor/Cache
CPU:Dual Socket P (LGA 3647)
Intel Xeon Scalable Processors,Dual UPI up to 10.4GT/s
Support CPU TDP 70-165W with IVR
Cores:Up to 28 Cores with Intel HT Technology
System Memory
Memory Capacity:12 DIMM slots
Up to 1.5TB ECC 3DS LRDIMM, 768GB ECC RDIMM, DDR4 up to 2666MHz
Memory Type:2666/2400/2133MHz ECC DDR4 SDRAM
On-Board Devices
Chipset:Intel C621 chipset
SATA:SATA3 (6Gbps) RAID 0, 1, 5, 10
Network Controllers:Dual LAN with Gigabit Ethernet from C621
IPMI:Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video:ASPEED AST2500 BMC Input / Output
SATA:8 SATA3 (6 Gbps) ports
LAN:2 RJ45 Gigabit Ethernet ports
1 RJ45 Dedicated IPMI LAN port
USB:4 USB 3.0 ports (rear)
Video:1 VGA port
DOM:2 SuperDOM (Disk on Module) ports
System BIOS
BIOS Type:AMI 32Mb SPI Flash ROM
Management
Software:Intel Node Manager
IPMI 2.0
KVM with dedicated LAN
SSM, SPM, SUM
SuperDoctor 5
Watch Dog
Power Configurations:ACPI / APM Power Management
PC Health Monitoring
CPU:Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator
FAN:Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Chassis
Form Factor:1U Rackmount
Model:CSE-113AC2-605WB
Dimensions and Weight
Available Colors:Black
Front Panel
Buttons:Power On/Off button
UID button
LEDs:Power status LED
HDD activity LED
Network activity LEDs
Universal Information (UID) LED
Expansion Slots
PCI-Express:2 PCI-E 3.0 x16 (FHHL) slots
1 PCI-E 3.0 x8 (LP) slot
1 PCI-E 3.0 x16 for Add-on-Module (AOM)
1 PCI-E M.2 SSD slot
(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)
Drive Bays
Hot-swap:8 Hot-swap 2.5" SAS/SATA drive bays
Peripheral:1 slim DVD-ROM drive bay (optional)
Backplane
SAS/SATA HDD Backplane
System Cooling
Fans:4 Counter-rotating 4cm PWM fans, 2 fans for cooling AOC
Power Supply
600W High-Efficiency Power Supply w/PMBus 1.2, I2C, PFC, and Digital Switching
AC Input:100-240V, 50-60Hz
DC Output:+3.3V: 15A
+5V: 18A
+5V standby: 3A
+12V: 49A
-12V: 0.5A
Certification: Platinum Certified
Operating Environment
RoHS:RoHS Compliant
Environmental Spec.:Operating Temperature: 10^oC - 35^oC (50^oF - 95^oF)
Non-operating Temperature: -40^oC to 60^oC (-40^oF to 140^oF)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Item Dimension (L inchxW inchxH inch)
29 x 23 x 12 Weight
49.00lb Warranty Information
1 Year
