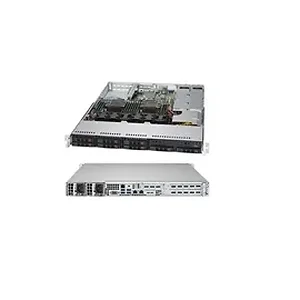

SYS-1029P-WTR - Supermicro Supermocrp System SYS-1029P-WTR 1U Xeon LGA3647 C621 Max.1.5TB 8x2.5 SAS/SATA PCIE Brown Box

Motherboard
Super X11DDW-L
Processor/Cache
CPU:
Dual Socket P (LGA 3647)
Intel Xeon Scalable Processors,Dual UPI up to 10.4GT/s
Support CPU TDP 70-165W with IVR
Cores:
Up to 28 Cores with Intel HT Technology
System Memory
Memory Capacity:
12 DIMM slots
Up to 1.5TB ECC 3DS LRDIMM, 768GB ECC RDIMM, DDR4 up to 2666MHz
Memory Type:
2666/2400/2133MHz ECC DDR4 SDRAM
On-Board Devices
Chipset:
Intel C621 chipset
SATA:SATA3 (6Gbps) RAID 0, 1, 5, 10
Network Controllers:
Dual LAN with Gigabit Ethernet from C621
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video:
ASPEED AST2500 BMC Input / Output
SATA:
8 SATA3 (6 Gbps) ports
LAN:
2 RJ45 Gigabit Ethernet ports
1 RJ45 Dedicated IPMI LAN port
USB:
4 USB 3.0 ports (rear)
Video:
1 VGA port
DOM:
2 SuperDOM (Disk on Module) ports
System BIOS
BIOS Type:
AMI 32Mb SPI Flash ROM
Management
Software:
Intel Node Manager
IPMI 2.0
KVM with dedicated LAN
SSM, SPM, SUM
SuperDoctor 5
Watch Dog
Power Configurations:
ACPI / APM Power Management
PC Health Monitoring
CPU:
Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator
FAN:
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for 8x fan connectors
Chassis
Form Factor
1U Rackmount
Model
CSE-113AC2-R706WB2
Dimensions and Weight
Available Colors
Black
Front Panel
Buttons
Power On/Off button
UID button
LEDs
Power status LED
HDD activity LEDNetwork activity LEDs
Universal Information (UID)
LED Expansion Slots
PCI-Express
2 PCI-E 3.0 x16 (FHHL) slots
1 PCI-E 3.0 x8 (LP) slot
1 PCI-E 3.0 x16 for Add-on-Module (AOM)
1 PCI-E M.2 SSD slot
Drive Bays
Hot-swap
8 Hot-swap 2.5" SAS/SATA drive bays
Peripheral
1 Slim DVD-ROM drive bay
(optional) Backplane
SAS/SATA HDD Backplane
System Cooling
Fans
4 Counter-rotating
4cm PWM fans, 2 fans for cooling AOC
AC/DC240V Input Redundant Power Supply
700W/750W Redundant Power Supplies with PMBus
Total Output Power
700W/750W
Dimension(W x H x L)
54.5 x 40.25 x 320 mm
Input
100 - 140Vac / 8 - 6A / 50-60Hz
200 - 240Vac / 4.5 - 3.8A / 50-60Hz
200 - 240Vdc / 4.5 - 3.8A (CCC Only)
+12V
Max: 58A / Min: 0.5A (100 - 140Vac)
Max: 62A / Min: 0.5A (200 - 240Vac)
Max: 62A / Min: 0.5A (200 - 240Vdc)
(CB/CCC Only)
+5V sb
Max: 3A / Min: 0A
Output Type
Gold Finger Connector Mating with Molex 45984-4343
Certification
UL/cUL/CB/BSMI/CE/CCC Platinum Certified
Test Report
Operating Environment
RoHS
RoHS Compliant
Environmental Spec.
Operating Temperature: 10^o to 35^oC (50^o to 95^oF)
Non-operating Temperature: -40^o to 60^oCC (-40^o to 140^oF)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Item Dimension (L inchxW inchxH inch)
24 x 18 x 2 Weight
46.00lb Warranty Information
1 Year
