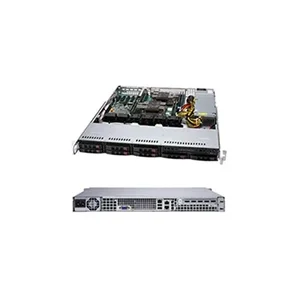

SYS-1029P-MT - Supermicro Systme SYS-1029P-MT 1U Xeon LGA 3647 C621 up to 1TB 8x2.5 inch Hot-Swap SATA3 600W Brown Box

Processor/Cache
CPU:
- Dual Socket P (LGA 3647)
- Intel Xeon Scalable Processors, Dual UPI up to 10.4GT/s
- Support CPU TDP 70-140W with IVR
Cores: Up to 28 Cores with Intel HT Technology System Memory
Memory Capacity:
- 8 DIMM slots
- Up to 1TB ECC 3DS LRDIMM, 512GB ECC RDIMM, DDR4 up to 2666MHz
Memory Type: 2666/2400/2133MHz ECC DDR4 SDRAM On-Board Devices
Chipset: Intel C621 chipset
SATA: SATA3 (6Gbps), RAID 0, 1, 5, 10
Network Controllers:
- Marvell 88E1512 PHY Gigabit Ethernet controller
- Supports 1000BASE-T
IPMI:
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video: ASPEED AST2500 BMC Input / Output
SATA: 8 SATA3 (6Gbps) ports
LAN:
- 2 RJ45 Gigabit Ethernet LAN ports
- 1 RJ45 Dedicated IPMI LAN port
USB: 2 USB 2.0 ports (rear)
Video: 1 VGA port
Serial Port / Header: 1 COM port (header)
DOM: 2 SuperDOM (Disk on Module) ports System BIOS
BIOS Type: 256Mb SPI Flash EEPROM with AMI BIOS Management
Software:
- Intel Node Manager
- IPMI 2.0
- KVM with dedicated LAN
- NMI
- SSM, SPM, SUM
- SuperDoctor 5
- Watch Dog
Power Configurations: ACPI / APM Power Management PC Health Monitoring
CPU:
- Monitors for CPU Cores, Chipset Voltages, Memory.
- 4+1 Phase-switching voltage regulator
FAN:
- Fans with tachometer monitoring
- Status monitor for speed control
- Pulse Width Modulated (PWM) fan connectors
Temperature:
- Monitoring for CPU and chassis environment
- Thermal Control for fan connectors Form Factor
1U Rackmount Available Colors
Black Front Panel
Buttons:
- Power On/Off button
- System Reset button
LEDs:
- Power status LED
- HDD activity LED
- Network activity LEDs
- Universal Information (UID) LED Expansion Slots
PCI-Express: 1 PCI-E 3.0 x8 (FHHL) slot Drive Bays
Hot-swap: 8 Hot-swap 2.5" SATA3 drive bays Peripheral Drives
Optional:
- 1 Slim DVD-ROM drive (optional)
- PCIe/SATA M.2 drive (optional) System Cooling
Fans: 4x 4cm 22.5K RPM middle cooling fans Power Supply
600W High-Efficiency Power Supply w/PMBus 1.2, I2C, PFC, and Digital Switching
AC Input: 100-240V, 50-60Hz
DC Output:
- +3.3V: 15A
- +5V: 18A
- +5V standby: 3A
- +12V: 49A
- -12V: 0.5A
Certification: Platinum Certified Operating Environment
RoH: RoHS Compliant
Environmental Spec.:
- Operating Temperature: 10^oC to 35^oC (50^oF to 95^oF)
- Non-operating Temperature: -40^oC to 60^oC (-40^oF to 140^oF)
- Operating Relative Humidity: 8% to 90% (non-condensing)
- Non-operating Relative Humidity: 5% to 95% (non-condensing) Item Dimension ( L inch x W inch x H inch)
30 x 24 x 9 Weight
40.00 lb Warranty Information
1 Year
