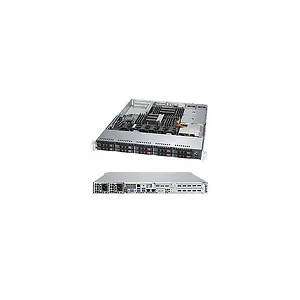

SYS-1028R-WC1R - Supermicro SuperServer SYS-1028R-WC1R Dual LGA2011 700W/750W 1U Rackmount Server Barebone System (Black

Motherboard
Super X10DRW-i

Processor/Cache
CPU
Intel Xeon processor E5-2600 v3 family (up to 145W TDP )
Dual Socket R3 (LGA 2011)
Cores / Cache

Up to 18 Cores / Up to 45MB Cache
System Bus
QPI up to 9.6 GT/s System Memory
Memory Capacity
16x 288-pin DDR4 DIMM sockets
Up to 1TB ECC LRDIMM, 512GB ECC RDIMM
Memory Type
2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
RDIMM: 32GB, 16GB, 8GB, 4GB
LRDIMM: 64GB, 32GB
Memory Voltage
1.2 V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory) On-Board Devices
Chipset
Intel C610 Chipset
SATA
SATA3 via Intel C610 RAID 0, 1
SAS
SAS3 (12Gbps) via LSI 3108
RAID 0, 1, 5, 6, 10, 50, 60 support
2GB DDR3 Cache
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC
Network Controllers
Intel i350 Dual Port Gigabit Ethernet Controller
Virtual Machine Device Queues reduce I/O overhead
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8211E PHY (dedicated IPMI)
Graphics
ASPEED AST2400 BMC Input / Output
Serial ATA
2x SATA3 (6Gbps) ports
SAS
8x SAS3 (12Gbps) ports
LAN
2x RJ45 Gigabit Ethernet LAN ports
1x RJ45 Dedicated IPMI LAN port
USB
6x USB 3.0 ports (4 rear + 2 via header)
VGA
1x VGA port
Serial Port / Header
1x Fast UART 16550 header
DOM
2x SuperDOM (Disk on Module) ports PC Health Monitoring
Voltage
Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages.
5+1 Phase-switching voltage regulator
FAN
6x 4-pin fan headers (up to 6 fans)
6x fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature
Monitoring for CPU and chassis environment
CPU thermal trip support
Thermal Control for 8x Fan Connectors
Thermal Monitor 2 (TM2) support
PECI LED
CPU / System Overheat LED
Suspend static indicator LED
UID/Remote UID
Other Features
Chassis intrusion detection
Chassis intrusion header
SDDC Support
RoHS Chassis
Form Factor
1U Rackmount

Model
CSE-116TQ-R706WB

Available Colors
Black Front Panel
Buttons
Power On/Off button
UID button
LEDs
Power status LED
HDD activity LED
2x Network activity LEDs
Universal Information (UID) LED Expansion Slots
PCI-Express
2 PCI-E 3.0 x16 full-height, Half-length slots

Drive Bays
Hot-swap
10 Hot-swap 2.5" SAS / SATA HDD trays (connected to onboard storage controller) Backplane
SAS/SATA HDD Backplane
Optional 2x 2.5" NVMe drives

System Cooling
Fans
5x 4cm heavy-duty counter-rotating fans w/ air shroud and optimal fan speed control Power Supply
700W/750W Redundant AC-DC high-efficiency power supply with PMBus and I2C
AC Voltage
700W: 100 - 140 V, 50-60 Hz
750W: 200 - 240V, 50-60 Hz
DC Output
+5V standby
3 Amp
DC Output
+12V
700W: 58 Amp at 100-140V
750W: 62 Amp at 200-240V
Certification
Platinum Level Certified Platinum Certified System BIOS
BIOS Type
128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features

Plug and Play (PnP)
APM 1.2
PCI 2.3
ACPI 1.0 / 2.0 / 3.0 / 4.0
BIOS resuce hot keys
USB Keyboard support
SMBIOS 2.7.1
UEFI 2.3.1 Management
Software
SuperDoctor 5
Watch Dog
NMI
IPMI 2.0
Intel Node Manager
Power Configurations
ACPI / APM Power Management
Power-on mode for AC power recovery

RoHS
RoHS Compliant Item Dimension (L"xW"xH"):
25.6 x 17.2 x 1.7

Weight:
46 lb

Warranty Information:
1 Year
