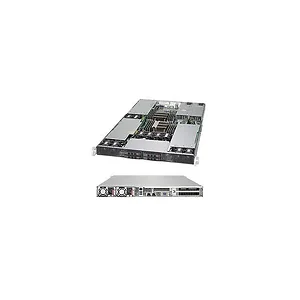

SYS-1028GR-TR - Supermicro SuperServer SYS-1028GR-TR Dual LGA2011 1000W/1600W 1U Rackmount Server Barebone System (Black

Motherboard
Super X10DRG-H

Processor/Cache
CPU
Intel Xeon processor E5-2600 v3 family (up to 145W TDP )
Dual Socket R3 (LGA 2011)
Cores / Cache
Up to 18 Cores / Up to 45MB Cache
System Bus
QPI up to 9.6 GT/s System Memory
Memory Capacity
16x 288-pin DDR4 DIMM sockets
Up to 1TB ECC LRDIMM, 512GB ECC RDIMM
Memory Type
2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
RDIMM: 32GB, 16GB, 8GB, 4GB
LRDIMM: 64GB, 32GB
Memory Voltage
1.2 V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory) On-Board Devices
Chipset
Intel C612 Express chipset
SATA
SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC
Network Controllers
Intel i350-AM2 Dual Port Gigabit Ethernet
Virtual Machine Device Queues reduce I/O overhead
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics
ASPEED AST2400 BMC Input / Output
SATA
10x SATA3 (6Gbps) ports
LAN
2x RJ45 Gigabit Ethernet ports
1x RJ45 Dedicated IPMI LAN port
USB
4x USB 3.0 ports (2 rear, 2 via header)
2x USB 2.0 ports (2 via headers)
Video
1x VGA Connector
Serial Port
1x Serial header System BIOS
BIOS Type
16Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
Plug and Play (PnP)
APM 1.2
DMI 2.3
PCI 2.3
ACPI 1.0 / 2.0 / 3.0
USB Keyboard support
SMBIOS 2.7.1
UEFI Form Factor
1U Rackmount

Available Color
Black

Front Panel
Buttons
Power On/Off button
System Reset button
LEDs
Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED / Fan fail LED /UID LED Expansion Slots
PCI-Express
4x PCI-E 3.0 x16 slots
(3x GPU/Xeon Phi cards optional)
1x PCI-E 3.0 x8 (in x16) low-profile slot

Drive Bays
Hot-swap
4x 2.5" Hot-swap drive bays

System Cooling
Fans
10x counter-rotating fans with optimal fan speed control Power Supply
1000W/1600W 1U Redundant Power Supply
AC Input
1000W at 100-127V, 12.9A Max., 50-60Hz
1600W at 200-240V, 9.5A Max., 50-60Hz
DC Output
1000W: +12V/82A +12Vsb/2A
1600W: +12V/132A +12Vsb/2A
Certification
Platinum Level Certified94%+ Platinum Level PC Health Monitoring
CPU
Monitors for CPU Cores,+1.5V, +3.3V, +5V, +12V, +5 Stdby, +3.3 Stdby, VBAT, Memory Voltages.
CPU Core 6-Phase-switching voltage regulator
FAN
Total of ten 4-pin PWM fans
10x fans with tachometer monitoring
Status monitor for speed control
Status monitor for on/off control
Low noise fan speed control Temperature
Monitoring for CPU and chassis environment
CPU thermal trip support
Thermal Control for 10x Fan Connectors
PSU I2C temperature sensing logic
Thermal Monitor 2 (TM2) support
PECI
LED
Power Fail / Overheat LED
Suspend-state Indicator LED
UID LED
Other Features
SDDC Support Item Dimension (L"xW"xH"):
30.6 x 17.2 x 1.7

Weight:
48 lb

Warranty Information:
1 Year
