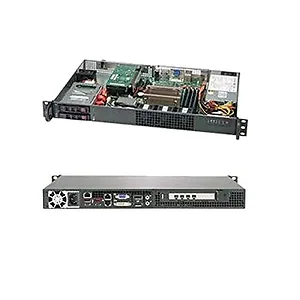

SYS-1019C-HTN2 - Supermicro System SYS-1019C-HTN2 Socket H4 LGA1151 C246 Max.64GB PCIExpress SATA3 200W Brown Box

Motherboard
Super X11SCZ-F
Processor
CPU:
- Single Socket H4 (LGA 1151), CPU TDP support up to 80W
- Support Intel Xeon E processors, 8th Gen. Intel Core^TM i3 Processors, Intel Celeron, Intel Pentium (up to TDP 80W)
- A graphic integrated CPU is required to have onboard video from the DVI and DP ports
System Memory
Memory Capacity:
- 4 DIMM slots
- Up to 64GB Unbuffered ECC/non-ECC UDIMM
- Up to DDR4-2666MHz
Memory Type:
- 2666/2400/2133MHz ECC DDR4 SDRAM
DIMM Sizes:
- 64GB, 32GB, 16GB, 8GB, 4GB
On-Board Devices
Chipset:
- Intel C246 chipset
SATA:
- SATA3 (6Gbps) via Intel C246 controller
- RAID 0, 1 support
IPMI:
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- ASPEED AST2500 BMC
Network Controllers:
- Single LAN with Intel I210-AT
- Single LAN with Intel PHY I219LM
Video:
- ASPEED AST2500 BMC and Intel HD Graphics
Audio:
- ALC 888S 7.1 HD Audio
Input / Output
SATA:
- 2 SATA3 (6Gbps) ports RAID 0, 1
LAN:
- 2 RJ45 Gigabit Ethernet LAN ports
- 1 RJ45 Dedicated IPMI LAN port
USB:
- 3 USB 3.1 ports (3 Type A and 1 Type C)
Video/Display:
- 2 DP (DisplayPort): 1 DVI-I, 1 VGA D-Sub Connector port
- 3 independent displays
Audio:
- MIC-in and LINE-out
TPM:
- TPM Header " Chip
System BIOS
BIOS Type:
- AMI UEFI
Management
Software:
- IPMI 2.0 with KVM support
- Watch Dog:
- SuperDoctor 5
Chassis
Form Factor:
- 1U Rackmount
Model:
- CSE-510FT-203B
Available Colors
Black
Front Panel
Buttons:
- Power On/Off button
- System Reset button
LEDs:
- Power LED
- Hard drive activity LED
- 2 Network activity LEDs
- System Overheat LED
Expansion Slots
PCI-Express:
- 1 PCI-E 3.0 x16 (HHHL) slot
M.2:
- M.2 Interface: 1 SATA/PCI-E 3.0 x4
- M.2 Form Factor: 2280/22110
- M.2 Key: M-Key
Drive Bays
Internal:
- 2 Hot-swap 2.5" SATA3 drive bays
(maximum 12mm-thick drive)
System Cooling
Fans:
- 4x 40x28mm 4-pin PWM fans
Power Supply
200W Low Noise AC-DC power supply with PFC
AC Voltage: 100 - 240V, 50-60Hz, 2.6 Amp Max
+5V: 8.0 Amp (max.)
+5V standby: - 2.0 Amp (max.)
+12V: - 16 Amp (max.)
-12V: - 0.5 Amp (max.)
+3.3V: 8.0 Amp (max.)
Certification: Gold Certified
PC Health Monitoring
CPU:
- Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
FAN:
- Total of 6 fan headers supporting up to 6 fans
- 6 fans with tachometer status monitoring
- Status monitor for speed control
- Status monitor for on/off control
- Low noise fan speed control
- Pulse Width Modulated (PWM) fan connectors
Temperature:
- Monitoring for CPU and chassis environment
- CPU thermal trip support
- I²C temperature sensing logic
- Thermal Monitor 2 (TM2) support
- PECI
Operating Environment / Compliance
RoHS:
- RoHS Compliant
Environmental Spec.:
- Operating Temperature: 10^oC to 40^oC (50^oF to 104^oF)
- Non-operating Temperature: -40^oC to 70^oC (-40^oF to 158^oF)
- Operating Relative Humidity: 8% to 90% (non-condensing)
- Non-operating Relative Humidity: 5% to 95% (non-condensing)
Item Dimension (L inchxW inchxH inch)
20 x 26 x 7
Weight
27.00lb
Warranty Information
3 Year
