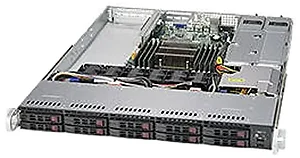

SYS-1018R-WC0R - Supermicro SuperServer 1018R-WC0R

Motherboard
Super X10SRW-F

Processor
CPU
Intel Xeon processor E5-2600/1600 v3 family(up to 145W TDP )
Single Socket R3 (LGA 2011)
Core / Cache
Up to 18 Cores / Up to 45MB Cache System Memory
Memory Capacity
8x 288-pin DDR4 DIMM sockets
Up to 512GB DDR4 ECC LRDIMM
Up to 256GB DDR4 ECC RDIMM
Memory Type
2133/1866/1600/1333MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM/LRDIMM) / 284-pin (UDIMM) gold-plated DIMMs
DIMM Sizes
RDIMM: 32GB, 16GB, 8GB, 4GB
Memory Voltage
1.2 V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory) On-Board Devices
Chipset
Intel C612 Express chipset
SATA
SATA3 (6Gbps) via C612 controller
RAID 0, 1, 10 support 5 supported under Windows
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC with 10/100/1000Mbps
Network Controllers
Intel i350-AM2 Dual Port Gigabit Ethernet
Virtual Machine Device Queues reduce I/O overhead
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
VGA
ASPEED AST2400 BMC Input / Output
SATA
10x SATA3 (6Gbps) ports
SATA DOM Power Connector
LAN
2x RJ45 Gigabit Ethernet LAN ports
1x RJ45 Dedicated IPMI LAN port
USB
2x USB 3.0 ports (rear)
2x USB 2.0 ports (rear)
2x USB 3.0 ports (front)
VGA
1x VGA port
Serial Port / Header
2x COM ports (1 rear, 1 header)
DOM
2x SuperDOM (Disk on Module) ports PC Health Monitoring
Voltage
Monitors for CPU Cores, +12V, +3.3V, +5V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN
6x 4-pin fan headers
6x fans w/ tachometer status monitoring
Status monitor for speed control
Status monitor for on/off control
Support 3-pin fans (w/o speed control)
Low noise fan speed control
Pulse Width Modulated (PWM) fan connectors Temperature
Monitoring for CPU and chassis environment
CPU thermal trip support
FC temperature sensing logic
Thermal Monitor 2 (TM2) support
PECI
LED
CPU / System Overheat LED
+5V Standby alert LED
Other Features
Chassis intrusion detection
Chassis intrusion header Form Factor
1U Rackmount

Available Colors
Black

Front Panel
Buttons
Power On/Off button
System Reset button
LEDs
Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED Expansion Slots
PCI-Express
2x PCI-E 3.0 x16 Full-height Full-length slots
1x PCI-E 3.0 x8 (in x16) Half-height Half-length slot

Drive Bays
Hot-swap
8x 2.5" Hot-swap SAS3/SATA3 HDD bays + 2x 2.5" Hot-swap SATA3 (total of 10) Backplane
SAS3/SATA3 HDD Backplane(SAS support requires optional SAS controller + cables)

System Cooling
Fans
3x 40x28mm 4-pin PWM Cooling Fans
1x Optional fan to cool add-on cards Power Supply
700W/750W Redundant AC-DC high-efficiency power supply with PMBus and I2C
AC Voltage
700W: 100 - 140 V, 50-60 Hz
750W: 200 - 240V, 50-60 Hz
DC Output +5V standby
3 Amp
DC Output +12V
700W: 58 Amp at 100-140V
750W: 62 Amp at 200-240V
Certification
Platinum Level Certified Platinum Certified System BIOS
BIOS Type
64Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
Plug and Play (PnP)
APM 1.2
DMI 2.3
PCI 2.3
ACPI 1.0 / 2.0 / 3.0 / 4.0
USB Keyboard support
Hardware BIOS Virus protection
SMBIOS 2.7.1
UEFI 2.3.1
RTC (Real Time Clock) Wakeup Management
Software
IPMI (Intelligent Platform Management Interface) v2.0 with KVM support
SuperDoctor III
Watch Dog
NMI
Power Configurations
ACPI / ACPM Power Management
Main Switch Override Mechanism
Power-on mode for AC power recovery
Internal/External modem ring-on

RoHS
RoHS Compliant Weight:
40 lb

Warranty Information:
1 Year
