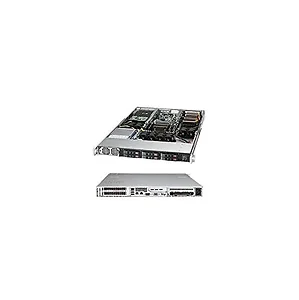

SYS-1018GR-T - Supermicro SY SYS-1018GR-T(3YR) 1U Xeon E5-2600v3 1TB DDR4 SATA PCIE3.0 1600W

Motherboard
Super X10SRG-F
Processor
CPU
Intel Xeon processor E5-2600 v4/ v3, E5-1600 v4/ v3 family (up to 145W TDP )
Single Socket R3 (LGA 2011)
Core / Cache
Up to 22 Cores / Up to 55MB Cache
Note
BIOS version 2.0 or above is required
Note
Motherboard supports this maximum TDP.
Please verify your system can thermally support
System Memory
Memory Capacity
8x 288-pin DDR4 DIMM slots
Up to 1TB ECC 3DS LRDIMM
Up to 512GB ECC LRDIMM
Up to 512GB ECC RDIMM
Memory Type
2400/ 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs
DIMM Sizes
3DS LRDIMM: 128GB
LRDIMM: 64GB, 32GB
RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
Memory Voltage
1.2 V
Error Detection
Corrects single-bit errors
On-Board Devices
Chipset
Intel C612 chipset
SATA
SATA3 (6Gbps) via C612 controller
RAID 0, 1, 5, 10 support
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC
Network Controllers
Intel i350 Dual Port Gigabit Ethernet
Virtual Machine Device Queues reduce I/O overhead
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics
ASPEED AST2400 BMC
Input / Output
SATA
6x SATA3 (6Gbps) ports
LAN
2x RJ45 Gigabit Ethernet LAN ports
1x RJ45 Dedicated IPMI LAN port
USB
2x USB 3.0 ports (rear)
Video
1x VGA Connector
Serial Port
1x Serial header
DOM
2x DOM (Disk on Module) power connectors
System BIOS
BIOS Type
128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
Plug and Play (PnP)
APM 1.2
DMI 2.3
PCI 2.3
ACPI 1.0 / 2.0 / 3.0 / 4.0
USB Keyboard support
Hardware BIOS Virus protection
SMBIOS 2.7.1
UEFI 2.3.1
RTC (Real Time Clock) Wakeup
Chassis
Form Factor
1U Rackmount
Model
CSE-118GTS-1K43BP2
Available Color
Black
Front Panel
Buttons
Power On/Off button
System Reset button
LEDs
Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED / Fan fail LED / UID LED
Expansion Slots
PCI-Express
2x PCI-E 3.0 x16 slots (support GPU/Xeon Phi cards)
1x PCI-E 3.0 x8 slot for I.B. card
UIO AOC Compatibility Matrix
Drive Bays
Hot-swap
6x 2.5" Hot-swap drive bays
System Cooling
Fans
8x counter-rotating fans with optimal fan speed control
Power Supply
1400W High-efficiency AC power supply with Digital Switching Control and PMBus 1.2
AC Voltage
1200W: 100-140 V, 14.7-10.5A, 50-60 Hz
1400W: 180-240 V, 10.5-8.0A, 50-60 Hz
+5V standby
6 Amp
+12V
100 Amp/115 Vac
117 Amp/230 Vac
With Power Distributor
+5V: 14 Amp
Certification
Platinum Certified
PC Health Monitoring
CPU
Monitors for CPU Cores,+1.5V, +3.3V, +5V, +12V, +5 Stdby, +3.3 Stdby, VBAT, Memory Voltages.
CPU Core 5-Phase-switching voltage regulator
FAN
Total of eight 4-pin PWM fans
8x fans with tachometer monitoring
Status monitor for speed control
Status monitor for on/off control
Low noise fan speed control
Temperature
Monitoring for CPU and chassis environment
CPU thermal trip support
Thermal Control for 8x Fan Connectors
PSU I²C temperature sensing logic
Thermal Monitor 2 (TM2) support
PECI
LED
Power Fail / Overheat LED
Suspend-state Indicator LED
UID LED
Other Features
SDDC Support
Operating Environment / Compliance
RoHS
RoHS Compliant
Environmental Spec.
Operating Temperature: 10^oC to 35^oC (50^oF to 95^oF)
Non-operating Temperature: -40^oC to 70^oC (-40^oF to 158^oF)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Weight
36.00 LB
Warranty Information
3 Year
