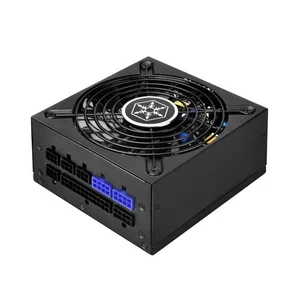

Silverstone SX700-LPT 700W SFX-L Fully Modular PSU

Out of Stock / 1 Sold
Condition: New

$206.48  $278.75
 Free Shipping for this Item

Product Overview

The SilverStone SX700-LPT is a fully modular power supply designed to meet the high demands of compact PC builds. With an output of 700W, this SFX-L power supply combines efficiency and reliability in a compact form factor.

It features a single 120mm FDB silent fan for optimal cooling, ensuring quiet operation even under load. The SX700-LPT is equipped with all the necessary protections to safeguard your components during operation.

Technical Specifications

  • Max. DC Output: 700W (Peak 750W)
  • Power Density: 678W per liter
  • Load Range:
    • +3.3V: Max. 22A, Min. 0A, Ripple 50mA
    • +5V: Max. 22A, Min. 0A, Ripple 50mA
    • +12V: Max. 58.4A, Min. 0A, Ripple 120mV
    • +5VSB: Max. 3.0A, Min. 0A, Ripple 50mA
    • -12V: Max. 0.3A, Min. 0A, Ripple 120mV
  • Combined Outputs: +3.3V and +5V: 120W, +12V: 700W
  • Input Voltage: 90V - 264V
  • Input Frequency Range: 47Hz - 63Hz
  • PFC: Active PFC > 0.95 at full load
  • Efficiency: 89% - 92% at 20% - 100% loading
  • MTBF: 100,000 hours
  • Operating Temperature: 0°C - 40°C
  • Protection Features: Over current, Over power, Over voltage, Short circuit, Under voltage, Over temperature
  • Connectors:
    • 1 x 24/20-Pin motherboard connector (300mm)
    • 1 x 8/4-Pin EPS/ATX 12V connector (400mm)
    • 4 x 8/6-Pin PCIe connectors (400mm / 150mm & 550mm / 150mm)
    • 6 x SATA connectors (300mm / 200mm / 100mm x 2)
    • 3 x SATA connectors (600mm / 150mm / 150mm)
    • 3 x 4-Pin Peripheral connectors (300mm / 200mm / 200mm)
    • 1 x 4-Pin Floppy adapter connector (100mm)
  • Cooling System: Single 120mm FDB silent fan

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • SilverStone
  • SX700-LPT
  • 844761013271
  • New
  • 6 lbs
  • 5 X 5 X 5
  • Today - Mar 19, 2026
  • Apr 10, 2020
Product Identifiers: Brand: Silverstone • Part #: SX700-LPT • UPC: 844761013271 • Category: Monitor Supplies

Silverstone SX700-LPT 700W SFX-L Fully Modular PSU
