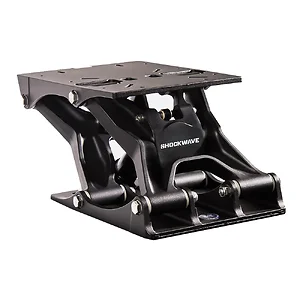

SW-07823-B - Shockwave Seats Shockwave S5-AL Suspension Base - Black

S5-AL Suspension Base - Black

The Shockwave S5-AL suspension base (formerly the S5 Sentinel) provides comfort and safety to boaters, offering them an experience they’ve never had before. It offers a smoother, safer, and more comfortable ride, protecting occupants from the shock of wave impact. Recreational boaters can stay out longer and travel farther with less fatigue. Made from anodized A360 cast aluminum that has been powder-coated and fitted with 316 stainless steel hardware, the S5-AL suspension base utilizes a four-link forward action suspension design.

Fitted with a FOX Rhythm air-sprung shock with adjustable rebound, suspension travel is 4-inch vertical and 1.5-inch forward, mitigating deceleration associated with wave impact.

A shock pump with a pressure gauge is included with your purchase at no extra cost.

Features:

• Designed and manufactured in Canada
• Custom-tuned and valved marine FOX Rhythm air spring and shock with adjustable rebound
• Surge protection: Suspension travel is 4-inch vertical and 1.5-inch forward, mitigating deceleration associated with wave impacts
• 4-Link Forward Action
• Anodized A360 Cast Aluminum, 316 SS Hardware, Powder Coated
• Minimal parts count and simple construction
• Easy to mount and adapt to the current seating

Vessel Application:

The S5-AL suspension base is most often found on fishing boats, coastal cruisers, ski/wake boats, guide boats, fisheries boats, whale watching boats, crew boats and yacht tenders. Due to its universal design, the S5-AL can be fitted to almost any boat and any seat.

The Shockwave S5-AL Suspension Base, part number SW-07823-B, is a marine seating component designed to enhance comfort and safety for boat occupants. This suspension base mitigates the impact of waves through a four-link forward action suspension design, featuring 4 inches of vertical travel and 1.5 inches of forward travel. It is constructed from anodized A360 cast aluminum, powder-coated, and utilizes 316 stainless steel hardware for durability in marine environments. The unit incorporates a custom-tuned FOX Rhythm air-sprung shock with adjustable rebound. This product is suitable for various vessel types, including fishing boats, coastal cruisers, ski/wake boats, guide boats, and yacht tenders, offering a solution for reducing occupant fatigue and providing a smoother ride. Its universal design allows for adaptation to most boats and existing seats.
