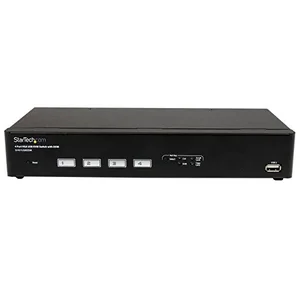

StarTech SV431USBDDMBrand NewIncludes 2 Year WarrantyProduct # SV431USBDDMThe SV431USBDDM 4-Port USB VGA KVM Switch lets you control 4 VGA, USB-equipped PCs using a single peripheral set at high-definition VGA resolutions up to 1920x1440. The included KVM cables provide a ready-out-of-the-box solution, while USB Dynamic Device Mapping (DDM) and Display Data Channel (DDC) features work to significantly reduce switching lag-time and improve overall compatibility with your connected display and input devices, saving you time and money. For the next level in KVM performance, this VGA KVM switch integrates multi-core dedicated processing per channel and innovative, USB DDM technology that enables you to quickly switch between connected computers with next-to-zero delay. DDM maintains a constant communication channel between your USB peripherals and connected systems, avoiding the time necessary for your systems to re-recognize the devices when switching. In addition to faster switching, the KVM offers All-time Display Data Channel (Full DDC) technology to maintain proper display detection among connected systems, a simple one-touch button for hot-key selection and an integrated 2-port USB hub allowing you to share additional peripherals. Backed by a StarTech.com 2-year warranty and free lifetime technical support. SV431USBDDM Features: Number of Computers Supported: 4 Number of Local Users Supported: 1 Maximum Video Resolution: 1920 x 1440 Network (RJ-45): Yes USB: Yes VGA: Yes Number of Network (RJ-45) Ports: 1 Number of USB Ports: 4 Number of VGA Ports: 5 Green Compliant: Yes Green Compliance Certificate/Authority: RoHS
Technical Specifications
Hardware Audio:No Cables Included:Yes Daisy-Chain:No KVM Ports:4 Multi-Monitor:No PC Interface:USB PC Video Type:VGA Rack-Mountable:No Connector(s) Console Interface(s):1 - VGA (15 pin High Density D-Sub) Female Console Interface(s):2 - USB A (4 pin) Female Host Connectors:4 - USB B (4 pin) Female Host Connectors:4 - VGA (15 pin High Density D-Sub) Female Other Interface(s):1 - RJ-45 Female Other Interface(s):2 - USB A (4 pin) Female Performance IP Control:No Maximum Analog Resolutions:1920x1440 Maximum Number of Users:1 Port Selection Support:Push Button and Hotkeys Color Black
Enclosure Type Steel
Indicators LED Indicators:4 - PC Selection Indicators LED Indicators:4 - Hot-Key Selection Indicators Power Center Tip Polarity:Positive Input Current:0.3A Input Voltage:100-240V Output Current:2.0A Output Voltage:5 DC Plug Type:M Power Adapter Included:Yes Whats in the Box Included in Package:1 - KVM Switch Included in Package:4 - 6ft VGA USB KVM Cables Included in Package1 - Firmware Upgrade Cable Included in Package1 - Universal Power Adapter (NA/UK/EU) Included in Package1 - Instruction Manual Item Dimension (L"xW"xH"): 13.78 x 10.04 x 7.48
