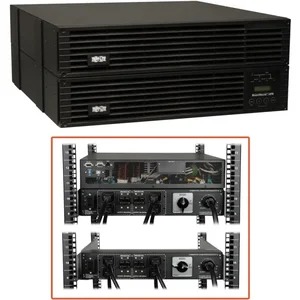

Tripp Lite SU6000RT4UHVG UPS, SmartOnline 6000VA, 5400W, 4U, 200-240V, C19 Outlets, USB, DB9, EPO

OUTPUT :
Output Volt Amp Capacity (VA): 6000
Output kVA capacity (kVA): 6.0
Output Watt Capacity (watts): 5400
Output kW capacity: 5.4
Output power factor: 0.9
Output Capacity Details : Output capacity de-rates to 4992 watts when used at 208V with optional L6-30P line cord
Crest Factor: 3:1
Nominal Output Voltage(s) Supported: 200V 208V 220V 230V 240V
Frequency compatibility: 50/60 Hz (auto-selectable)
Frequency compatibility details: Output frequency matches input nominal on startup Frequency conversion mode enable conversion of 60Hz to 50Hz or 50Hz to 60Hz (no de-rating) Output voltage regulation (line mode): +/- 2%
Output voltage regulation (Economy line mode) : +/- 10%
Output voltage regulation (Battery mode): +/- 2%
Built-in UPS output receptacles: 4 C19 outlet(s)
Output receptacle details: Output receptacle and input connections are mounted on a detachable PDU backplate with bypass switch to enable hot-swappable power module replacement
Output circuit breaker : Two 20A breakers protect 2 C19 outlets each
Output AC waveform (AC mode) : Pure Sine wave
Output AC waveform (battery mode): Pure Sine wave INPUT :
Rated input current (at maximum load): 31.9A (200V), 30.6A (208V), 29A (220V), 27.7A (230V), 26.6A (240V)
Nominal Input Voltage(s) Supported: 200V AC 208V AC 220V AC 230V AC 240V AC
Nominal input voltage description : Factory configured to 208V
UPS input connection type : Hardwire
UPS input connection description : Additional input cordsets supported, see related items
UPS Input cord length (ft.): 10
UPS Input cord length (m): 3
Recommended Electrical Service : 30A BATTERY :
Full load runtime (minutes) : 2 minutes (5400 watts)
Half load runtime (minutes) : 8.5 minutes (2700 watts)
Expandable battery runtime : Runtime is expandable with external battery packs
External battery pack compatibility : BP192V12-3U BP192V557C-1PH BP192V787C-1PH BP192V1037C-1PH BP192V1407C-1PH
DC system voltage (VDC) : 192
Battery recharge rate (included batteries) : 6 hours from 10% to 90% (internal batteries)
Replacement battery cartridge (internal UPS battery replacement): RBC5-192
Battery Access: Front panel battery access door
Battery replacement description: Hot-swappable, user replaceable internal batteries LEDS ALARMS SWITCHES :
LED Indicators : 6 LEDs indicate line power, online mode, economy/bypass mode, on-battery, charger and AC output status LCD screen offers additional information and control options
Alarms: Unique audible alarms for all major UPS, environmental and power conditions (see manual)
Alarm cancel operation: Alarm cancel switch
Switches : Includes main power off/on switch, plus 2 switches to set and execute scrollable LCD functions. A manual bypass switch featured on the detachable PDU allows for complete removal of the UPS during routine maintenance without disrupting power to connected loads. SURGE / NOISE SUPPRESSION :
UPS AC suppression response time : Instantaneous
EMI / RFI AC noise suppression : Yes PHYSICAL :
Installation form factors supported with included accessories : 4 post 19 inch rackmount (mounting kit included)
Installation form factors supported with optional accessories : 2 post rackmount (2POSTRMKITWM) Tower (2-9USTAND)
Primary form factor: Rackmount
Installed whole system total rack space height (rack spaces) : 4U
UPS housing material : Steel
Cooling method : Fans COMMUNICATIONS :
Communications interface : USB (HID enabled) DB9 Serial EPO (emergency power off) Slot for SNMP/Web interface
Network monitoring port description : Additional contact closure support with optional RELAYIOCARD and RELAYIOMINI interface cards. RELAYIOMINI installation requires removal of panel containing USB ports
PowerAlert software : Included
Communications cable : USB, DB9 serial and EPO cables included
WatchDog compatibility : Yes LINE / BATTERY TRANSFER :
Transfer time : No transfer time (0 ms.) in online, double-conversion mode
Transfer time (economy mode) : 8 ms. typical power failure response in optional economy mode
Low voltage transfer to battery power (setpoint) : 156V (full load) / 100V (50% load or less, derates linearly)
High voltage transfer to battery power (setpoint) : 280V (full load) / 300V (90% load or less) SPECIAL FEATURES :
Cold Start (startup in battery mode during a power failure) : Cold-start operation supported
High availability UPS features : Automatic inverter bypass Manual bypass switch Detachable hot-swap PDU Hot swappable UPS power module Hot swappable batteries
Green high efficiency features : High efficiency economy mode operation Schedulable daily hours of economy mode operation CERTIFICATIONS :
UPS Certifications : Tested to UL1778 (USA) Tested to CSA (Canada) Meets FCC Part 15 Category A (EMI) ROHS (Restriction of Hazardous Substances)
UPS Certification details : IEC 61000-4-5 1995 B Surge Immunity Weight : 156.50 lb

Item Dimension (L"xW"xH") : 12.7 x 23.6 x 29.1

Warranty Information :
Canada Puerto Rico) 250,000 connected equipment insurance
