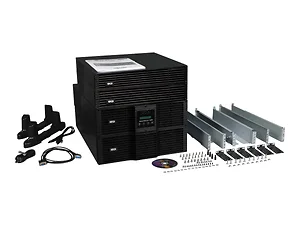

SU10000RT3U2TF - Eaton Tripplite Tripp Lite, UPS, SmartOnline 10, 000VA, 10U, 208/120V, 9000W, L6-30R, L6-20R & 5-15/20R

OUTPUT
Output Volt Amp Capacity (VA) :10000
Output kVA capacity (kVA) :10
Output Watt Capacity (watts) :9000
Output kW capacity:9.0
Output power factor:0.9
Nominal Output Voltage(s) Supported:120V 208V
Frequency compatibility:60 Hz
Frequency compatibility details:Output frequency regulation +/- 0.05Hz (free running)
Output voltage regulation (line mode) :+/- 2%
Output voltage regulation (Economy line mode) :+/- 10%
Output voltage regulation (Battery mode) :+/- 2%
Built-in UPS output receptacles:24 5-15/20R outlet(s) 4 L6-20R outlet(s) 2 L6-30R outlet(s)
Output circuit breaker:20A double-pole (x2) protects 2 L6-20R outlets each, 30A double-pole (x2) protects 1 L6-30R outlets each, 20A single-pole (x8) protect 3 5-15/20R outlets each
Output AC waveform (AC mode) :Pure Sine wave
Output AC waveform (battery mode) :Pure Sine wave INPUT
Rated input current (at maximum load) :54A (208V)
Nominal Input Voltage(s) Supported:208V AC
UPS input connection type:Hardwire
UPS input connection description:3 wire single phase input (L1, L2, G) BATTERY
Full load runtime (minutes) :4.3 min. (9000w)
Half load runtime (minutes) :12.5 min. (4500w)
Expandable battery runtime:Supports extended runtime with optional external battery packs
External battery pack compatibility:BP240V10RT3U BP240V557C-1PH BP240V787C-1PH BP240V1037C-1PH BP240V1407C-1PH
DC system voltage (VDC) :240
Battery recharge rate (included batteries) :Less than 6 hours from 10% to 90%
Battery replacement description:Hot-swappable, user replaceable external battery packs VOLTAGE REGULATION
Voltage regulation description:2% output voltage regulation in standard online, double-conversion mode
Overvoltage correction:Corrects overvoltages up to 300V
Undervoltage correction:Corrects undervoltages as low as 100V LEDS ALARMS and SWITCHES
LED Indicators:6 LEDs indicate line power, online mode, economy/bypass mode, on-battery, charger and AC output status LCD screen offers additional information and control options
Front panel LCD display:Selectable LCD display with scroll and selection buttons enables UPS control and detailed monitoring options LED/LCD panel rotates for viewing in rack/tower formats LCD Display supports ENGLISH, FRENCH, GERMAN, ITALIAN, SPANISH and PORTUGUESE (see manual)
Alarms:Unique audible alarms for all major UPS, environmental and power conditions (see manual)
Alarm cancel operation:Alarm cancel switch
Switches:2 Switches control off/on power status and alarm-cancel/self-test operation 2 additional switches support set and execute scrolling LCD functions bundled PDU includes bypass switch to enable hot-swap UPS power module replacement SURGE / NOISE SUPPRESSION
UPS AC suppression response time:Instantaneous
EMI / RFI AC noise suppression:Yes

COMMUNICATIONS
Communications interface:USB (HID enabled) DB9 Serial EPO (emergency power off) Slot for SNMP/Web interface
Network monitoring port description:Additional contact closure support with optional RELAYIOCARD and RELAYIOMINI interface cards. RELAYIOMINI installation requires removal of panel containing USB ports
PowerAlert software:Included
Communications cable:USB, DB9 serial and EPO cables included
WatchDog compatibility:Supports Watchdog application, OS and hard-reboot restart options for remote applications LINE / BATTERY TRANSFER
Transfer time:No transfer time (0 ms.) in online, double-conversion mode
Transfer time (economy mode) :8 ms. typical power failure response in optional economy mode
Low voltage transfer to battery power (setpoint) :100V
High voltage transfer to battery power (setpoint) :300V

SPECIAL FEATURES
Cold Start (startup in battery mode during a power failure) :Cold-start operation supported
Economy mode operation:Optional economy mode enables high efficiency bypass operation with a maximum output voltage variation of +/-10%. Double conversion mode is automatically restored as mains voltage varies beyond +/-10% with less than 1 millisecond transfer time between modes.
High availability UPS features:Automatic inverter bypass Manual bypass switch Detachable hot-swap PDU Hot swappable UPS power module Hot swappable batteries
Green and high efficiency features:High efficiency economy mode operation Schedulable daily hours of economy mode operation CERTIFICATIONS
UPS Certifications:Tested to UL1778 (USA) Tested to CSA (Canada) Tested to NOM (Mexico) Meets FCC Part 15 Category A (EMI)
UPS Certification details:IEC 61000-4-5 1995 B Surge Immunity Weight:
402.10 lb

Warranty Information
2 YEAR WARRANTY
250,000 Ultimate Lifetime Insurance (USA, Puerto Rico Canada only
