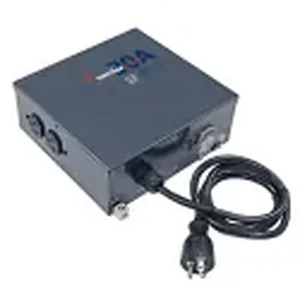

Samlex America STS-30 Samlex 30A Automatic Transfer Switch with Quick Connect

Samlex 30A Automatic Transfer Switch with Quick Connect

This versatile automatic transfer switch allows you to effortlessly switch between multiple AC power sources, including shore power, generators, and inverters. Ideal for those who require reliable power management while on the road or off-grid.

Key Features:

• Seamlessly switches between two AC power sources: Utility Power, Generator, or Inverter.
• Rated for 30 Amps at 120 VAC; designed for use with a 30 Amp Utility Power Cord or Generator up to 3.6 KVA.
• Equipped with a robust Double Pole Double Throw (DPDT) relay to switch both Line and Neutral connections.
• Flexible installation options: can be placed on the line side of the main breaker panel or the load side for specific circuits.
• Includes a DIP switch to configure a 20 to 25 second time delay when switching to generator power.
• Standard North American power cord included for easy connection to 15 Amp NEMA5-15R receptacles; switch to a 30 Amp cord for full capacity.
• NEMA5-20R Duplex Receptacle facilitates easy connection for battery chargers.
