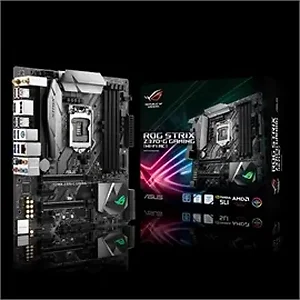

Asus STRIX Z370-G GAMING WI-FI ROG STRIX Z370-G GAMING (WI-FI AC) LGA1151/ Intel Z370/ DDR4/ 2-Way CrossFireX & 2-Way SL

With aesthetics inspired by the sharpest blades and premium colorways to match any mood, the all-new ROG Strix Z370 motherboards are ready to do battle — and infused with all the essential ROG engineering needed to push performance as far as you dare. Ready for the latest 8th Generation Intel® Core™ processors, ROG Strix Z370-G Gaming (WI-FI AC) is loaded with overclocking and cooling innovations to keep your gaming rig's thermals in check as you turn up the clock. Factor in custom Aura RGB illumination and superior SupremeFX audio and you'll know that ROG Strix Z370-G Gaming (WI-FI AC) looks great and sounds amazing — and outperforms every expectation to dominate your game!

Customization
ROG Strix Z370-G Gaming (WI-FI AC) looks as good as it performs, with built-in RGB illumination, it's perfect for the style-conscious part of your personality!

Outshine the competition
A well-tuned system deserves a matching aesthetic. ASUS Aura offers a variety of eye-catching presets for the built-in RGB as well as full manual control, so light up quick and easy or get creative by designing your own illumination — the choice is yours. And it can all be synced with an ever-growing portfolio of Aura-capable hardware.

5-Way Optimization
One-click overclock and cooling, done!
One click takes care of all that complex tuning. ASUS 5-Way Optimization makes your PC smart. It dynamically optimizes essential aspects of the system, providing overclocking and cooling profiles that are tailored for your rig.

• An automated tuning utility that optimizes overclocking and cooling profiles for your unique system configuration.
• Fans stay whisper-quiet for everyday computing, and deliver optimal airflow when the system is crunching through CPU or GPU-intensive tasks.
• All-new stress test that allows users to optimize and overclock for CPU or memory-centric workloads..

CPU
Intel Socket 1151 for 8th Generation Core Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0

Chipset
Intel Z370

Memory
4 x DIMM, Max. 64GB, DDR4 4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered, Register Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)

Graphic
Integrated Graphics Processor- Intel HD Graphics support
Multi-VGA output support : HDMI/DisplayPort 1.2 ports
- Supports HDMI with max. resolution 4096 x 2160 at 24 Hz
- Supports DisplayPort with max. resolution 4096 x 2304 at 60 Hz
Maximum shared memory of 1024 MB
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Supports up to 3 displays simultaneously
DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays

Multi-GPU Support
Supports NVIDIA 2-Way SLI Technology
Supports AMD 2-Way CrossFireX Technology

Expansion Slots
2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
2 x PCIe 3.0/2.0 x1

Storage
Intel Z370 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA and PCIE 3.0 x 4 mode)
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel Optane Memory Ready

LAN
Intel I219V, Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY)
Anti-surge LANGuard
ROG GameFirst Technology

Wireless Data Network
Wi-Fi 802.11 a/b/g/n/ac

Bluetooth
Bluetooth V4.2

Audio
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Dual Headphone Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/192kHz playback
Audio Feature :
- SupremeFX Shielding Technology
- Optical S/PDIF out port(s) at back panel
- Sonic Radar III
- Sonic Studio III + Sonic Studio Link

USB Ports
Intel Z370 Chipset : 6 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, 2 at mid-board)
Intel Z370 Chipset : 6 x USB 2.0 port(s)
ASMedia USB 3.1 Gen 2 controller : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, red, Type-A)

ROG Exclusive Features
ROG RAMCache II
ROG CPU-Z
ROG CloneDrive
Overwolf
GameFirst IV

Special Features
5-Way Optimization by Dual Intelligent Processors 5
- Whole system optimization with a single click 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 4, and Turbo App together, providing better CPU performance,
efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
TPU
- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors
- Auto Tuning, TPU, GPU Boost
selection for optimized system cooling control
Gamers Guardian:
- ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
- DRAM Overcurrent Protection
- Stainless Steel Back I/O
- Highly Durable Components
- DIGI+ VRM
- SafeSlot
ASUS EPU :
- EPU
AURA :
- Aura Lighting Control
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
Digi+VRM
Turbo APP

Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2 Type-A
2 x USB 2.0
4 x USB 3.1 Gen 1
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x ASUS Wi-Fi GO module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.2)

Internal I/O Ports
1 x AAFP connector
1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x W_PUMP+ connector (1 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x CPU_OV jumper

Accessories
Users manual
1 x Vertical M.2 bracket set
I/O Shield
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x CPU installation tool
1 x Supporting DVD
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
1 x Strix door hanger
1 x SLI HB BRIDGE(2-WAY-S)
1 x Cable ties pack(s)
1 x Thermistor cable(s)
1 x STRIX series sticker
1 x CPU Fan Holder

BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information.

Manageability
WfM2.0, DMI3.0, WOL by PME, PXE

Support Disc
Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version)

Operating System
Windows 10 64-bit

Form Factor
mATX Form Factor

Item Dimension (L inchxW inchxH inch)
12 x 11 x 3

Weight
3.59 lb

Warranty Information
3 Years
