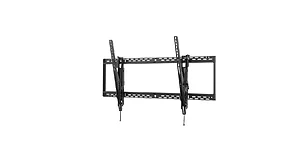

ST680P - Peerless Universal Tilt Wall Mount for 60 to 102 Displays

Product Information

• Part Number: ST680P
• Model Name: SmartMount Universal Tilt Wall Mount
• Minimum Screen Size Supported: 61 inches
• Maximum Screen Size Supported: 102 inches
• Maximum Weight Capacity: 350 lbs (158.76 kg)
• Mount Type: Tilting Wall Mount

Product Description

The Peerless ST680P SmartMount Universal Tilt Wall Mount offers a reliable and stylish solution for mounting large flat panel displays ranging from 61 to 102 inches. This innovative mount features a slim profile while securely holding displays weighing up to 350 lbs. Its easy installation process includes auto-latching adapter rails that allow the display to be secured without tools, and a built-in kickstand to facilitate cable management. The design also supports an open wall plate for versatile electrical and cable routing options. The exclusive pre-tensioned design allows for quick adjustments of the tilt viewing angle with fixed options available, ensuring optimal viewing from various positions.

Product Specifications

• Color: Black
• Finish: Powder Coat, Fused Epoxy
• Distance from Wall: 3.38 - 10.58 inches (86 - 269mm) adjustable due to tilt
• Tilt Angle: +15° to -5°
• VESA Mounting Patterns Supported: ['200x200', '200x300', '200x400', '200x500', '300x200', '300x300', '300x400', '300x500', '300x600', '400x200', '400x300', '400x400', '400x500', '400x600', '500x200', '500x300', '500x400', '500x500', '500x600', '600x300', '600x400', '600x500', '600x600', '600x900', '700x300', '700x400', '700x500', '700x600', '700x700', '800x300', '800x400', '800x500', '800x600', '800x700', '900x400', '900x500', '900x600', '900x700', '1000x400', '1000x500', '1000x600', '1000x700', '1100x700', '1119x745mm (44.04" W x 29.31" H)']
• Mounting Surface: Wood studs (2 or 3), Concrete, Cinder block, Metal studs (accessory required)
• Horizontal Adjustment: Up to 12 inches (304mm)
• Vertical Adjustment: 1 inch (post-installation)
• Security Features: Non-security hardware
• UL Listed: Yes
• Product Dimensions (W x H x D): 45.75" x 26.50" x 3.38"-10.58" (1162 x 673 x 86-269mm)
• Product Weight: 19.13 lbs (8.7 kg)
• Shipping Weight: 24.5 lbs (10 kg)
• Warranty: 5-year limited warranty

The Peerless ST680P SmartMount Universal Tilt Wall Mount is designed for securely installing large flat panel displays in commercial or institutional environments. This tilting wall mount supports screens ranging from 61 to 102 inches and can accommodate displays weighing up to 350 lbs (158.76 kg). It offers a tilt angle range of +15� to -5�, allowing for viewing angle adjustments to suit various room layouts or user preferences. The mount features a slim profile with an adjustable distance from the wall between 3.38 and 10.58 inches. Installation is streamlined with auto-latching adapter rails that do not require tools for securing the display, and a built-in kickstand aids in cable management. An open wall plate design facilitates versatile electrical and cable routing. This solution is suitable for IT departments or facility managers needing a robust and adaptable mounting option for large displays in conference rooms, lobbies, or digital signage applications.
