Product Overview

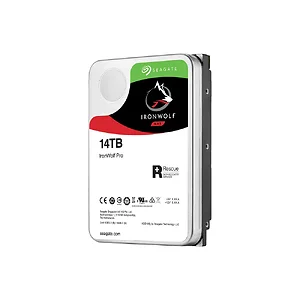

Seagate IronWolf Pro drives (up to 14TB) come with AgileArray technology that focuses on drive balance, RAID optimization with error recovery control, and power management on commercial and enterprise NAS enclosures up to 24 bays. Purpose-built for creative pro and small- to medium-sized business, the drives also offer IronWolf Health Management for dependable drive health monitoring. Enjoy that extra peace of mind knowing your digital assets are protected with a Rescue Data Recovery Plan (HDD Data Recovery) in place.
Technical Specifications
Interface
SATA 6Gb/s
- Features
Drive Bays Supported
Up to 24-bay
Multi-User Technology (TB/yr)
300
Rotational Vibration (RV) Sensors
Yes
Hot-Plug Support 2
Yes
Cache (MB)
256
- Reliability/Data Integrity
Mean Time Between Failures (MTBF, hours)
1,200,000
Reliability Rating at Full 247 Operation (AFR)
0.73%
Nonrecoverable Read Errors per Bits Read, Max
1 per 10E15
Power-On Hours per Year (247)
8760
Sector Size (Bytes per Logical Sector)
512E
Rescue Services 3
Yes
- Performance
Spindle Speed (RPM)
7200
Interface Access Speed (Gb/s)
6.0, 3.0, 1.5
Max. Sustained Transfer Rate OD (MB/s)
250MB/s
Average Latency (ms)
4.16
Interface Ports
Single
Rotational Vibration at 10-1500 Hz (rad/s2)
12.5
- Power Consumption
Startup Current, Typical (12V, A)
2.0
Idle Power, Average (W)
5.3
Average Operating Power (W)
7.9W
Standby Mode (W)
0.8
Sleep Mode (W)
0.8
Power Supply Requirements
+12 V and +5 V
- Environmental/Temperature
Operating (ambient, min oC)
5
Operating (drive case, max oC)
60
Nonoperating (ambient, min oC)
-40
Nonoperating (ambient, max oC)
70
- Environmental/Acoustics
Vibration, Nonoperating: 10Hz to 500Hz (Grms)
2.27
Idle (typical) 3
1.8bels
Seek (typical)
2.8bels
- Environmental/Shock
Shock, Operating 2ms (Read/Write) (Gs)
70/40Gs
Shock, Nonoperating, 1ms and 2ms (Gs)
250
Footnotes
2. Supports Hot-Plug operation per Serial ATA Revision 2.6 specification.
3. Rescue recovery services not available in all countries. Contact your Seagate sales representative for further details. Register an IronWolf Pro drive to activate your 2-year Rescue plan at seagate.com/register.
Item Dimension(L inchxW inchxH inch)
6 x 5 x 2
Weight
1.52lb
Warranty Information
5 (limited warranty)
