ST1000SPEX2L - Startech ADD A 10/100/1000MBPS ETHERNET PORT TO | Aztek Computers
29+Years
SKU: LMEK0OHSTJ |  Mfg. Part: ST1000SPEX2L  | UPC: 065030852265  |  0 Reviews  |     Share

ST1000SPEX2L - Startech ADD A 10/100/1000MBPS ETHERNET PORT TO ANY PC THROUGH A PCI EXPRESS SLOT - 1 POR

Special Order
Ships in 1-2 weeks
Condition: New

$29.61  $39.97
 Free Shipping for this Item

Product Overview

Add a 101001000Mbps Ethernet port to any PC through a PCI Express slot - 1 Port PCI Express Gigabit NIC Server Adapter Network Card, Low Profile PCI Express Gigabit LAN Card, PCI Express Gigabit Server Adapter, PCIe Network Card.

Expert Overview

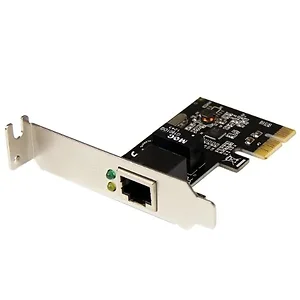

The StarTech ST1000SPEX2L is a 1-port PCI Express Gigabit Network Card designed to add a 10/100/1000 Mbps Ethernet port to a client PC, server, or workstation. This adapter is suitable for IT professionals or businesses requiring an additional or replacement networking interface in systems with an available PCI Express slot. It addresses common connectivity needs such as upgrading older network interfaces, adding a dedicated port for specific network segments, or replacing a failed integrated LAN port. The card supports IEEE 802.3/u/ab standards, 9K Jumbo Frames, VLAN tagging, and Wake on LAN (WOL) for effective network performance. It comes pre-configured with a low-profile bracket and includes a standard profile bracket, allowing installation in various computer chassis form factors. This product provides a reliable solution for expanding network capabilities without requiring a motherboard replacement.

Technical Specifications

General Information
Manufacturer:StarTech.com
Manufacturer Part Number:ST1000SPEX2L
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:1 Port PCI Express PCIe Gigabit NIC Server Adapter Network Card - Low Profile
Marketing Information:

The ST1000SPEX2L Low-Profile PCIe Gigabit Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.

Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter offers effective network performance.

The card comes pre-configured with a low-profile/half-height installation bracket and includes a standard profile bracket for installation in a wide range of computer/server chassis, regardless of form factor.

Backed by a 2-year StarTech.com warranty and free lifetime technical support.


Packaged Quantity:1
Product Type:Gigabit Ethernet Card

Technical Information
Chipset Manufacturer:Realtek
Chipset Model:RTL8111
Interfaces/Ports
Host Interface:PCI Express
Total Number of Ports:1
Network (RJ-45):Yes
USB:No
Serial Port:No
Ethernet AUI:No
XJACK:No
PoE (RJ-45) Port:No
Number of Network (RJ-45) Ports:1
Media & Performance
Media Type Supported:Twisted Pair
Data Transfer Rate:125 MB/s
Network & Communication
Network Technology:10/100/1000Base-T
Physical Characteristics
Card Length:Half-length
Card Height:Low-profile
Form Factor:Plug-in Card
Height:1.9"
Width:0.7"
Length:2.8"
Thickness:700 mil
Weight (Approximate):1 oz
Miscellaneous
Package Contents:
  • 1 Port PCI Express PCIe Gigabit NIC Server Adapter Network Card - Low Profile
  • 1 x Standard Profile Bracket
  • 1 x Instruction Manual

Device Supported:PC
System Requirements:
  • Windows® 2000, XP, Vista, 7, 8, 8.1, 10
  • Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
  • Mac OS X® 10.6 to 10.9
  • Linux 2.4.x to 4.11.x LTS Versions Only

Environmentally Friendly:Yes
Environmental Certification:
  • WEEE
  • RoHS

Country of Origin:China
Warranty
Limited Warranty:2 Year

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • TAA Compliant:
  • Country of Origin:
  • STARTECH
  • ST1000SPEX2L
  • B00E4KZDJ0
  • 065030852265
  • New
  • 2.97 lbs
  • 6 X 1 X 6
  • Sep 27, 2026
  • Apr 20, 2021
  • Yes
  • CN
Product Identifiers: Brand: Startech • Part #: ST1000SPEX2L • UPC: 065030852265 • ASIN: B00E4KZDJ0 • Category: Network Cards • TAA Compliant

Frequently Asked Questions

What operating systems are compatible with this network card?

This network card is compatible with Windows 2000, XP, Vista, 7, 8, 8.1, 10, Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019, Mac OS X 10.6 to 10.9, and Linux 2.4.x to 4.11.x LTS versions.

What is included in the package?

The package includes the 1 Port PCI Express PCIe Gigabit NIC Server Adapter Network Card (Low Profile), one standard profile bracket, and an instruction manual.

Does this network card support low-profile installations?

Yes, the card comes pre-configured with a low-profile/half-height installation bracket. A standard profile bracket is also included for full-height chassis installations.

What network technologies does this adapter support?

This adapter supports 10/100/1000Base-T network technology, providing Gigabit Ethernet connectivity over twisted pair media.
