Technical Specifications

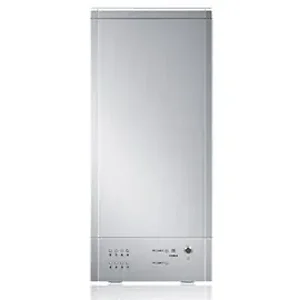

SANS DIGITAL REMOVABLE DEVICE TR8X+ 8XBAY SAS/SATA JBOD STORAGE ENCLOSURE SILVER RETAIL
The TowerRAID TR8X+ is ab 8-bay tower with two mini-SAS connections, for high transfer rates of up to 750MB/s when used with a high performance RAID controller card. Utilizing high bandwidth mini-SAS (SFF-8088) cabling, the TR8X+ supports 6Gb/s SAS or SATA hard drives to deliver superior read / write speeds that are crucial in performance-driven environments such as video editing industry and server application. The mini-SAS ports combine eight hard drives connections into two, reducing possible points of failures, while preserving uninterrupted data transfer. The TR8X+ also supports SATA drives, allowing users the option to choose between high performance and high capacity storage solutions. Hard drive and RAID controller bundles options are available. When utilizing a SAS or SATA RAID controller, the unit could effortlessly support multi-streaming of compressed high-quality playback or a single-stream of uncompressedΎ-bit high definition video under various RAID modes. -------------------------
VENDOR: Sans Digital
MPN: TR8X+
UPC:
DETAIL SPECIFICATIONS
MODEL: TR8X+
FORM FACTOR: Compact Tower
HDD TRAYS: 8 Hot-Swappable 3.5"
RAID LEVEL: JBOD (RAID Supported via Controller Card)
MAXIMUM CAPACITY: 24TB
COMPATIBLE RAID CARD : Areca, Intel, LSI, Adaptec, Dell, 3ware
HOST INTERFACE AND TRANSFER RATE: Mini-SAS (SFF-8088) x 2
DRIVE INTERFACE: 3.5 SATA I / SATA II or SAS 3Gbps
COOLING FAN: 4.7" Ball Bearing
POWER SUPPLY: 300W (90V-264V)
STATUS INDICATORS: Status and Power LEDs
DIMENSION (IN) : 5.9"W x 13.4"H x 13.4"D
WEIGHT (LB) : 13
SAFETY REGULATIONS: CE, FCC, UL, RoHS
LIMITED WARRANTY: 1 Years
PACKAGE CONTENTS: TR8X+ (1) Hard Drive Trays (8) Power Cord (1) Mini-SAS to Mini-SAS Cable (2) Screws (1 set) Quick Installation Manual and CD (1)
