Technical Specifications

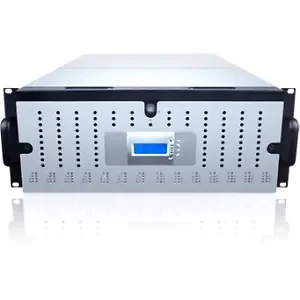

SANS DIGITAL STORAGE AR442F8R 4U 42-BAY SAS/SATA TO 8G FCX8 RAID RACKMOUNT RETAIL
The AccuRAID AR442F8R series is a high density 4U rackmount designed for storage hungry applications, and accommodates up to 126TB of storage space. The unit utilizes advanced Fibre technology when operating as direct attached storage (DAS), and could be setup as a storage area network (SAN) with the assistance of a Fibre Channel network switch. In addition, the quad Fibre Channel ports allow the support of clustering, where the unit could be accessed by multiple servers, ensuring continuous uptime in a production environment.
To reinforce the AR442F8R?s ability to overcome hardware failure, two redundant and hot-swappable power supplies and cooling fans are available for added safeguard. Active-Active redundant controllers allows further failure protection when needed. Internally, the AR442F8R supports up to RAID 60, with RAID monitoring, RAID notification, automatic failover, and automatic recovery. Build-in expansion port allow up to two additional JBOD unit (AS424X6R) with up to 126 bays or 378TB. The unit?s built-in Ethernet port with web based management console and SES management features provide instant access to the status of the RAID array and the enclosure to reduce downtime. SAS drives is supported, while SATA can be used with additional mux board. -------------------------
VENDOR: Sabio Digital
MPN: AR442F8R
UPC:
DETAIL SPECIFICATIONS
MODEL: AR442F8R
FORM FACTOR: 4U Rackmount
HDD TRAYS: 42 Hot-Swappable 3.5", expandable up to 126 bays
RAID LEVEL: 0, 1, 10, 3, 5, 6 , 30, 50, 60
MAXIMUM CAPACITY: 126TB, expandable up to 378TB
MEMORY: 1GB, Upgradable to 4GB DDR-2 ECC SD-RAM Memory per controller
AUTO REBUILDING: Yes
HOT-SPARE: RAID 1, 10, 3, 5, 6, 30, 50 and 60
HOST INTERFACE AND TRANSFER RATE: Quad 2 Fiber Channel (8 Gbps) (8 ports total)
DRIVE INTERFACE: SAS or SATA (Additional mux board required for SATA drives with redundant controller)
COOLING FAN: 4 x Blower Fans
POWER SUPPLY: 1100W x 2 Redundant Power Supply Modules
CONTROL INTERFACE : LCD Panel, RS232, RJ-45 Ethernet
STATUS INDICATORS: 1 LED/ HDD
ITEM DIMENSION (L"XW"XH"): 36 x 26 x 25
WEIGHT:⎟.0 lb
WARRANTY INFORMATION 3 Years
