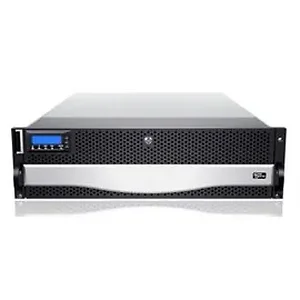

Sans Digital Storage AR316IT 3U 16-Bay 2x10GbE iSCSI to SAS/SATA RAID Retail
The AccuRAID AR316IT is a 3U 16-bay quad channel (4x GbE) iSCSI to SAS/SATA RAID subsystem with redundant controller upgradeable option. With built-in 2x 10Gb Ethernet ports supporting independent access, fail-over or load-balancing (802.3ad port trunking, LACP), AR316IT is capable of composing a high performance SAN environment with a fraction of the cost of Fibre Channel RAID storage systems. Built-in redundant controller ready backplane allows non-destructive redundancy controller upgrade path without purchasing a brand new hardware. Supporting RAID 0, 1, 1+0, 3, 5, 6, 30, 50, 60 and JBOD, with global or dedicated hot spare disks, multiple hard drive failure could be protected without downtime or data loss.
The built-in powerful 64-bit RAID processor provides high performance through-put. The built-in Snapshot feature provides point-in-time copy of saved data without relying on the host software. Management is available via Web and Secure Web (HTTPS), SSH telnet or serial console, with built-in event notification via e-mail or SNMP trap. Redundant power supplies, cooling fans and controllers are part of the modularized design to allow redundancy as well as off-self spare parts to eliminate downtime. To increase the return of investment, AR316IT supports both SAS and SATA drives, and could be expanded by adding up to 3 additional SAS/SATA JBOD units, providing solutions up to 64-bays or 128TB in total storage capacity. Intended to provide storage solution for IT and vitalization server computing with VMware vSphere or, Microsoft Hyper-V or Citrix with SCSI-3 persistent target support, the AR316IT is a perfect solution for Storage Area Network needs in IT and other applications.
| Vendor: | Sans Digital |
| MPN: | AR316IT |
| UPC: | 739410733399 |
Detail Specifications
Model:
AR316IT
Form Factor:
3U Rackmount
HDD Trays:
16 Hot-Swappable 3.5" |
Reduntant Controller:
Single Controller, Redundant Controller Upgradeable
RAID Level:
0, 1, 0+1, 3, 5, 6, 30, 50, 60, JBOD
Maximum Capacity:
48TB (3TB hard drives requires additional Mux Board) |
Auto Rebuilding:
Yes
Hot-Spare:
Global or Dedicated Hot Spare Disk
Host Interface and Transfer Rate:
Gigabit Ethernet 10Gb x 2 support 802.11ad (Up to 600MB/s)
LACP and Jumbo Frame supported |
Drive Interface:
SAS / SATA
Cooling Fan:
4 Hot-Swappable Modules and Blowers
Power Supply:
500W X 2 Redundant power supplies w/ PFC
Control Interface :
LCD Panel, RS232, RJ-45 Ethernet |
Status Indicators:
HDD, Fail, and Overheat
Multi-Path IO :
Yes
Snapshot:
Yes (up to 32), Built-in Snapshot wthout reply on host software
Max. Host Connections:
32 |
Max. Host Clustering:
16 multiple host clustered for one logical volume
Max. Session:
128
Battery Backup :
Optional
Safety Regulations:
CE, FCC, UL, RoHS |
Package Contents:
Rail Bracket(1 Set)
Power Cords (2)
Serial Cable (1)
Ethernet Cable (1)
Hard Drive Mounting Screws and trays
CD and User Guide (1) |
Item Dimension (L"xW"xH"):
19 x 20.5 x 5.5
Weight:
44.0 lb
Warranty Information
3 Years |
