Silverstone SST-FX350-G PS SST-FX350-G 350W Flex ATX 80+ Gold 40mm fan Black Retail
Out of Stock
Condition: New
$101.98$137.67
Free Shipping for this Item
Product Overview

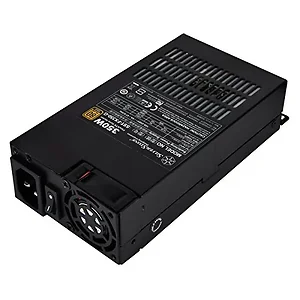

SilverStone SST-FX350-G 350 W TFX / Flex ATX 80 PLUS GOLD Certified Active PFC Power Supply
Technical Specifications
Max. DC Output 350W Power density 707W per liter Load Range +3.3V Max.(Amps) 17A Min.(Amps) 0A Range (%) +/-3% Line Reg.(%) +/-1% Ripple(mVp-p) 50mV +5V Max.(Amps) 14A Min.(Amps) 0A Range (%) +/-3% Line Reg.(%) +/-1% Ripple(mVp-p) 50mV +12V1 Max.(Amps) 29.17A Min.(Amps) 0A Range (%) +/-3% Line Reg.(%) +/-1% Ripple(mVp-p) 120mV +12V2 Min.(Amps) 0A +5VSB Max.(Amps) 2.5A Min.(Amps) 0A Range (%) +/-10% Line Reg.(%) +/-1% Ripple(mVp-p) 50mV -12V Max.(Amps) 0.3A Min.(Amps) 0A Range (%) +/-10% Line Reg.(%) +/-1% Ripple(mVp-p) 120mV Color BlackLead-Free Paint Combined +3.3V and +5V 90W Combined +12V 350W Input Voltage 90 to 264 Vrms Input Frequency Range 47Hz to 63Hz PFC Active PFC (PF>0.9 at full load) Efficiency 87% to 90% at 20% to 100% loading MTBF 100,000 hours Operating temperature 0oC to 40oC Protection Over Power Protection Over Voltage Protection Short Circuit Protection Connectors 1 x 24 / 20-Pin motherboard connector350mm 1 x 2-Pin connector (300mm) 1 x 8 / 4-Pin EPS / ATX 12V connector450mm 1 x 6-Pin PCIe connector350mm 3 x SATA connector350mm / 150mm / 150mm 2 x 4-Pin Peripheral connector350mm / 150mm 1 x 4-Pin Floppy adapter connector350mm / 150mm / 150mm Cooling System Single 40mm silent fan
