| SI-TEX SST-10 - Specifications | |
| Power Supply | 9.50vdc to 33.00vdc (absolute maximum) 0.045 amps nominal current draw Operation outside this range can cause erratic behavior or damage |
| Operating Temperature | 32F?° to 122F° ( 0° to 50° C) |
| Size | 4.3" x 4.3. x 3.5. deep (110 x 110 x 89 mm). |
| Display Data | Water Temperature, High and Low alarms, temperature trend arrows, alarm symbol. |
| Resolution | 0.01° Fahrenheit or Celsius. |
| Accuracy | +-00.1° F° |
| Range | 32.00° to 99.99° F (0.00° to 37.77° C) |
| Transducers | Transom and bronze thru-hull temperature probes available. |
| Display | 4 digit LCD, 5 levels of backlighting. |
| NMEA0183 Output Sentences | Water temperature: (Degrees C) $VWMTW,xx.xx,C*CS (Degrees F) $IIXDR,G,xx.xx*CS |

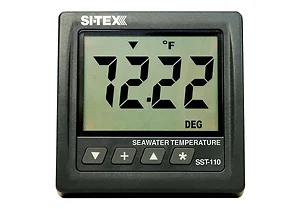

The SI-TEX SST-10 is a dedicated surface temperature monitor designed for applications requiring precise water temperature data. This unit provides real-time water temperature readings with a resolution of 0.01� Fahrenheit or Celsius and an accuracy of +/-0.1� F. It operates within a temperature range of 32.00� to 99.99� F (0.00� to 37.77� C).
Key features include a 4-digit LCD with five levels of backlighting, allowing for clear visibility in various conditions. The device displays water temperature, high and low alarms, temperature trend arrows, and an alarm symbol. Power is supplied via 9.50vdc to 33.00vdc, with a nominal current draw of 0.045 amps. The SST-10, part number SST-110TS, is suitable for integration into existing systems, offering NMEA0183 output for water temperature data. It is compatible with both transom and bronze thru-hull temperature probes, providing flexibility for installation.
SST-110TS - Si-tex Sitex SST110 Surface Temp With Thru Hull Sensor
