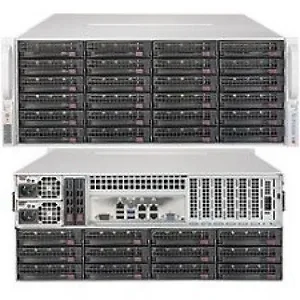

Supermicro SSG-6048R-E1CR36H System SSG-6048R-E1CR36H 4U E5-2600v3 LGA2011 DDR4 36x3.5inch SAS/SATA Retail

Motherboard
Super X10DRH-iT Processor/Cache
CPU: Intel Xeon processor E5-2600 v4/ v3 family (up to 145W TDP)
Dual Socket R3 (LGA 2011)
Cores / Cache: Up to 22 Cores / Up to 55MB Cache
System Bus: QPI up to 9.6 GT/s System Memory
Memory Capacity: 16x 288-pin DDR4 DIMM slots
Up to 2TB ECC 3DS LRDIMM, 512 ECC RDIMM
Memory Type: 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes: RDIMM: 32GB, 16GB, 8GB, 4GB
LRDIMM: 64GB, 32GB
3DS LRDIMM: 128GB
Memory Voltage: 1.2 V
Error Detection: Corrects single-bit errors On-Board Devices
Chipset: Intel C612 chipset
SAS: SAS3 (12Gbps) via Broadcom 3108 AOC HW RAID 0,1,5,6,10,50,60
SATA: SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI: Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC
Network Controllers: Intel X540 Dual Port 10GbE
Virtual Machine Device Queues reduce I/O overhead
Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Realtek RTL8201N PHY (dedicated IPMI)
Graphics: ASPEED AST2400 BMC Input / Output
LAN: 2 RJ45 10GBase-T LAN ports
1 RJ45 Dedicated IPMI LAN port
USB: 2 USB 3.0 ports (rear)
2 USB 2.0 ports (rear)
1 Type A
VGA: 1 VGA port
Serial Port / Header: 1 Fast UART 16550 port / 1 Header Chassis
Form Factor: 4U Rackmount
Model: CSE-847BE1C-R1K28LPB
Available Color: Black Front Panel
Buttons: Power On/Off button
System Reset button
LEDs: Power status LED
Hard drive activity LED
2 Network activity LEDs
System Overheat LED
Power fail LED Expansion Slots
PCI-Express: 1 PCI-E 3.0 x16 slot
6 PCI-E 3.0 x8 slots
Slot 1 and 2 occupied by controller and JBOD Expansion Port Drive Bays
Hot-swap: 36x 3.5" Hot-swap SAS3/SATA3 drive bays
Double-sided: 24 front + 12 rear drive bays
Optional: 2x 2.5" Hot-swap SATA drive bays (rear)
Fixed internal Drive Bracket supports 1x 3.5 or 2x 2.5" devices Drive Bays
Hot-swap: 36x 3.5" Hot-swap SAS3/SATA3 drive bays
Double-sided: 24 front + 12 rear drive bays
Optional: 2x 2.5" Hot-swap SATA drive bays (rear)
Fixed internal Drive Bracket supports 1x 3.5 or 2x 2.5" devices System Cooling
Fans: 7x 80mm middle cooling fans
Redundant cooling Power Supply with Digital Switching Control and PMBus 1.2
1280W High-Efficiency (95%+) power supply
AC Input: 1000W Output at 100-140V, 12-8A, 50-60Hz
1280W Output at 180-240V, 8-6A, 50-60Hz
DC Output: 1000W: +12V/83A +5Vsb/4A
1280W: +12V/106.7A, +5Vsb/4A
Certification: Platinum Certified System BIOS
BIOS Type: 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features: Plug and Play (PnP)
APM 1.2
PCI 2.2
ACPI 1.0 / 2.0
USB Keyboard support
SMBIOS 2.3
UEFI Operating Environment / Compliance
RoHS: RoHS Compliant
Environmental Spec.: Operating Temperature: 10^oC to 35^oC (50^oF to 95^oF)
Non-operating Temperature: -40^oC to 70^oC (-40^oF to 158^oF)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing) Item Dimension (L"xW"xH")
NA

Weight
102.5 lbs

Warranty Information
3 Years
