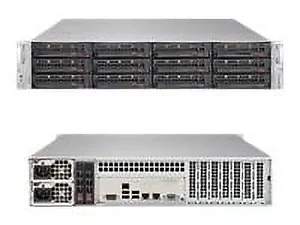

SSG-6029P-E1CR12T(3YR) - Supermicro SuperStorage 6029P-E1CR12T Server Barebone System - 2U Rack-mountable - Socket P LGA

Motherboard
Super X11DPH-T Processor/Cache
CPU :
Dual Socket P (LGA 3647)
Intel Xeon Scalable Processors, 3 UPI up to 10.4GT/s
Support CPU TDP 70-205W
Cores :Up to 28 Cores with Intel HT Technology
System Memory
Memory Capacity :
16 DIMM slots
Up to 2TB ECC 3DS LRDIMM, 512GB ECC RDIMM, DDR4 up to 2666MHz
Memory Type :2666/2400/2133MHz ECC DDR4 SDRAM On-Board Devices
Chipset :Intel C624 chipset
SAS :
SAS3 (12Gbps) via Broadcom 3108 AOC HW RAID
RAID 0, 1, 5, 6, 10, 50, 60
SATA :SATA3 (6Gbps) RAID 0, 1, 5, 10
Network Controllers : Dual 10GBase-T LAN ports with Intel X722 + PHY Intel X557
IPMI :
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video :ASPEED AST2500 BMC
Input / Output
LAN :
2 RJ45 10GBase-T LAN ports
1 RJ45 Dedicated IPMI LAN port
USB :
4 USB 3.0 ports (rear)
1 Type A
Video :1 VGA port
Serial Port / Header :1 Fast UART 16550 port / 1 Header
System BIOS
BIOS Type :256Mb AMI UEFI
Management
Software :
Intel Node Manager
IPMI 2.0
NMI
SPM, SUM
SuperDoctor 5
Watchdog
PC Health Monitoring
CPU :
Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator
FAN :
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature :
Monitoring for CPU and chassis environment
Thermal Control for fan connectors Chassis
Form Factor :2U Rackmount
Model :CSE-826BE1C4-R1K23LPB
Front Panel
Buttons :
Power On/Off button
System Reset button
LEDs :
Power status LED
Hard drive activity LED
Network activity LEDs
System Overheat LED
Power fail LED
Expansion Slots
PCI-Express :3 PCI-E 3.0 x16 slot
4 PCI-E 3.0 x8 slots
Slot 1 occupied by controller Drive Bays
Hot-swap :12 Hot-swap 3.5" SAS3/SATA3 drive bays
Optional :2 Optional Onboard NVMe M.2
Backplane
SAS3 12Gb/s direct attached storage backplane, w/ 24x SAS3 2.5" drive slots System Cooling
Fans :3 Hot-swap 8cm redundant PWM cooling fans Power Supply (76mm Width)
1200W Redundant Power Supplies with PMBus
Total Output Power :1000W/1200W
Input :
100-127Vac / 15-12A / 50-60Hz
200-240Vac / 8.5-7A / 50-60Hz
200-240Vdc / 8.5-7A (for CCC only)
+12V :
Max: 83A / Min: 0A (100-127Vac)
Max: 100A / Min: 0A (200-240Vac)
Max: 100A / Min: 0A (200-240Vdc)
+5Vsb :Max: 4A / Min: 0A
Output Type :19 Pairs Gold Finger Connector Certification
UL/cUL/CB/BSMI/CE/CCC
Titanium Level
Operating Environment
RoHS :RoHS Compliant
Environmental Spec. :
Operating Temperature: 10^oC to 35^oC (50^oF 95^oF )
Non-operating Temperature: -40^oC to 60^oC (-40^oF to 140^oF )
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Item Dimension (L inchxW inchxH inch)
30 x 23 x 14

Weight
61.00lb

Warranty Information
3 Years
