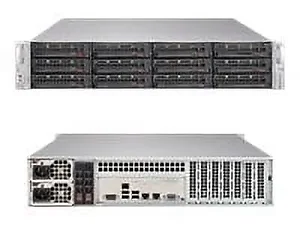

Supermicro SSG-6029P-E1CR12H(3YR) SuperStorage 6029P-E1CR12H Server Barebone System - 2U Rack-mountable - Socket P LGA-3

<b>Motherboard</b><br>Super X11DPH-T<br> <b>Processor/Cache</b><br>CPU:Dual Socket P (LGA 3647) <br>Intel Xeon Scalable Processors,3 UPI up to 10.4GT/s<br>Support CPU TDP 70-205W<br>Cores:Up to 28 Cores with Intel HT Technology<br> <b>System Memory</b><br>Memory Capacity:16 DIMM slots<br>Up to 2TB ECC 3DS LRDIMM, 512GB ECC RDIMM, DDR4 up to 2666MHz<br>Memory Type:2666/2400/2133MHz ECC DDR4 SDRAM<br> <b>On-Board Devices</b><br>Chipset:Intel C624 chipset<br>SAS:SAS3 (12Gbps) via Broadcom 3108 AOC HW RAID<br>RAID 0, 1, 5, 6, 10, 50, 60<br>SATA:SATA3 (6Gbps) RAID 0, 1, 5, 10<br>Network Controllers:Dual 10GBase-T LAN ports with Intel X722 + PHY Intel X557<br>IPMI:Support for Intelligent Platform Management Interface v.2.0<br>IPMI 2.0 with virtual media over LAN and KVM-over-LAN support<br>Video:ASPEED AST2500 BMC<br> <b>Input / Output</b><br>LAN:2 RJ45 10GBase-T LAN ports<br>1 RJ45 Dedicated IPMI LAN port<br>USB:4 USB 3.0 ports (rear) <br>1 Type A<br>Video:1 VGA port<br>Serial Port / Header:1 Fast UART 16550 port / 1 Header<br> <b>System BIOS</b><br>BIOS Type:256Mb AMI UEFI<br> <b>Management</b><br>Software:Intel Node Manager<br>IPMI 2.0<br>NMI<br>SPM, SUM<br>SuperDoctor 5<br>Watchdog<br> <b>PC Health Monitoring</b><br>CPU:Monitors for CPU Cores, Chipset Voltages, Memory. <br>4+1 Phase-switching voltage regulator<br>FAN:Fans with tachometer monitoring<br>Status monitor for speed control<br>Pulse Width Modulated (PWM) fan connectors<br>Temperature:Monitoring for CPU and chassis environment<br>Thermal Control for fan connectors<br> <b>Chassis</b><br>Form Factor:2U Rackmount<br>ModelCSE-826BE1C4-R1K23LPB <b>Dimensions</b><br>Available Colors:Black<br> <b>Front Panel</b><br> Buttons:Power On/Off button<br>System Reset button<br>LEDs:Power status LED<br>Hard drive activity LED<br>Network activity LEDs<br>System Overheat LED<br>Power fail LED<br> <b>Expansion Slots</b><br>PCI-Express:3 PCI-E 3.0 x16 slot<br>4 PCI-E 3.0 x8 slots<br>Slot 2 and 3 occupied by controller and JBOD expansion port<br> <b>Drive Bays</b><br>Hot-swap:12 Hot-swap 3.5" SAS3/SATA3 drive bays<br>Optional:2 Optional Onboard NVMe M.2<br> <b>Backplane</b><br>SAS3 12Gb/s direct attached storage backplane, w/ 24x SAS3 2.5" drive slots<br> <b>System Cooling</b><br>Fans:3 Hot-swap 8cm redundant PWM cooling fans<br> <b>Power Supply (76mm Width) </b><br>1200W Redundant Power Supplies with PMBus<br>Total Output Power:1000W/1200W<br>Dimension(W x H x L):76 x 40 x 336 mm<br>Input:100-127Vac / 15-12A / 50-60Hz<br>200-240Vac / 8.5-7A / 50-60Hz<br>200-240Vdc / 8.5-7A (for CCC only) <br>+12V:Max: 83A / Min: 0A (100-127Vac) <br>Max: 100A / Min: 0A (200-240Vac) <br>Max: 100A / Min: 0A (200-240Vdc) <br>+5Vsb:Max: 4A / Min: 0A<br>Output Type:19 Pairs Gold Finger Connector<br>Certification: UL/cUL/CB/BSMI/CE/CCC<br>Titanium Level<br> <b>Operating Environment</b><br>RoHS:RoHS Compliant<br>Environmental Spec.:Operating Temperature: 10^oC to 35^oC (50^oF to 95^oF) <br>Non-operating Temperature: -40^oC to 60^oC (-40^oF to 140^oF) <br>Operating Relative Humidity: 8% to 90% (non-condensing) <br>Non-operating Relative Humidity: 5% to 95% (non-condensing) <br> <b>Item Dimension (L inchxW inchxH inch)</b><br>NA <b>Weight</b><br> 61.00lb <b>Warranty Information</b><br>1 Year
