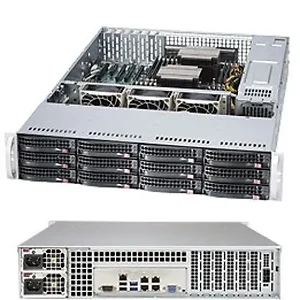

SSG-6028R-E1CR12N - Supermicro SuperStorage Server 6028R-E1CR12N

Motherboard
Super X10DRi-T4+

Processor/Cache
CPU
Intel Xeon processor E5-2600 v3 family (up to 145W TDP )
Dual Socket R3 (LGA 2011)
Cores / Cache
Up to 18 Cores / Up to 45MB Cache
System Bus
QPI up to 9.6 GT/s System Memory
Memory Capacity
24x 288-pin DDR4 DIMM sockets
Up to 1.5TB ECC LRDIMM, 512GB ECC RDIMM
Memory Type
2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
RDIMM: 32GB, 16GB, 8GB, 4GB
LRDIMM: 64GB, 32GB
Memory Voltage
1.2 V
Error Detection
Corrects single-bit errors On-Board Devices
Chipset
Intel C612 Express chipset
SAS
SAS3 (12Gbps) via LSI 3108 AOC HW RAID
SATA
SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC Network Controllers
Quad 10GBase-T LAN with Intel X540 Ethernet Controller
Virtual Machine Device Queues reduce I/O overhead
Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics
ASPEED AST2400 BMC Input / Output
LAN
4x RJ45 10GBase-T LAN ports
1x RJ45 Dedicated IPMI LAN port
USB
2x USB 3.0 ports (rear)
1x Type A
VGA
1x VGA port
Serial Port / Header
1x Fast UART 16550 port / 1 Header Form Factor
2U Rackmount

Available Colors
Black

Front Panel
Buttons
Power On/Off button
System Reset button
LEDs
Power status LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED
Power fail LED Expansion Slots
PCI-Express
2x PCI-E 3.0 x16 slot
3x PCI-E 3.0 x8 slots
Slot 3 4 occupied by controller and JBOD Expansion Port

Drive Bays
Hot-swap
12x 3.5" Hot-swap SAS3/SATA3 drive bays Backplane
SAS3/SATA3 single expander per backplane

System Cooling
Fans
3x 8cm hot-swap redundant PWM cooling fans Power Supply with Power Distributor
920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C
AC Input
100-240 V, 50-60 Hz, 11-4.5 Amp
DC Output
4 Amp +5V standby
75 Amp +12V
Certification
Platinum Level Certified94%+ Platinum Certified System BIOS
BIOS Type
128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
Plug and Play (PnP)
APM 1.2
PCI 2.2
ACPI 1.0 / 2.0
USB Keyboard support
SMBIOS 2.3
UEFI

RoHS
RoHS Compliant Item Dimension (L"xW"xH"):
25.6 x 17.2 x 3.5

Weight:
62 lb

Warranty Information:
1 Year
