Technical Specifications
Motherboard
Super X10SRH-CLN4F
Processor
CPU
Intel Xeon processor E5-2600/1600 v3 family (up to 145W TDP )
Single Socket R3 (LGA 2011)
Core / Cache
Up to 18 Cores / Up to 45MB Cache System Memory
Memory Capacity
8x 284-pin DDR4 DIMM sockets
Up to 512GB DDR4 ECC LRDIMM
Up to 256GB DDR4 ECC RDIMM
Memory Type
2133/1866/1600/1333MHz ECC DDR4 SDRAM 72-bit, 284-pin gold-plated DIMMs
DIMM Sizes
RDIMM: 32GB, 16GB, 8GB, 4GB
Memory Voltage
1.2 V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory) On-Board Devices
Chipset
Intel C612 Express chipset
SAS
SAS3 (12Gbps) via LSI 3008 (IR mode)
SW RAID 0, 1, 10
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC Network Controllers
Intel i350-AM4 Quad Port Gigabit Ethernet
Virtual Machine Device Queues reduce I/O overhead
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics
ASPEED AST2400 BMC Input / Output
SAS
8x SAS3 (12Gbps) ports
SATA
10x SATA3 (6Gbps) ports
LAN
4x RJ45 Gigabit Ethernet LAN ports
1x RJ45 Dedicated IPMI LAN port
USB
2x USB 3.0 ports (rear)
2x USB 2.0 ports (rear)
VGA
1x VGA port
Serial Port / Header
1x Fast UART 16550 port / 1 Header Form Factor

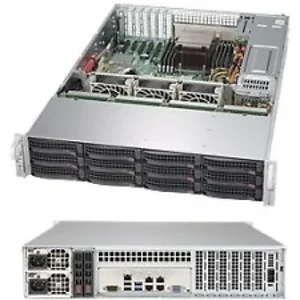

2U Rackmount
Available Colors
Black
Front Panel
Buttons
Power On/Off button
System Reset button
LEDs
Power status LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED
Power fail LED Expansion Slots
PCI-Express
1x PCI-E 3.0 x4 (in x8) slot
1x PCI-E 3.0 x8 (in x16) slot
2x PCI-E 3.0 x8 slots
1x PCI-E 2.0 x2 (in x4) slot
1x PCI-E 2.0 x4 (in x8) slot
Drive Bays
Hot-swap
12x 3.5" Hot-swap SAS3 HDD bays
Optional
2x 2.5" Hot-swap HDD bays (rear) Backplane
SAS3 Backplane: SAS3 12Gbps single expander backplane, w/ LSISAS3x28 expander, support 12x 3.5" drives, with 4x mini-SAS HD connectors, 2 for uplink and another 2 for downlink System Cooling
Fans
3x 8cm 9.5K RPM, 4-pin PWM fans
Power Supply with Power Distributor
920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C
AC Input
100-240 V, 50-60 Hz, 11-4.5 Amp
DC Output
4 Amp at +5V standby
75 Amp at +12V
Certification
Platinum Level Certified94%+ Platinum Certified System BIOS
BIOS Type
128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
Plug and Play (PnP)
APM 1.2
PCI 2.2
ACPI 1.0 / 2.0
USB Keyboard support
SMBIOS 2.3
UEFI
RoHS
RoHS Compliant Item Dimensin (L"xW"xH"):
7.13 x 6.65 x 1.85
Weight:
58 lb
Warranty Infrmatin:
1 Year
