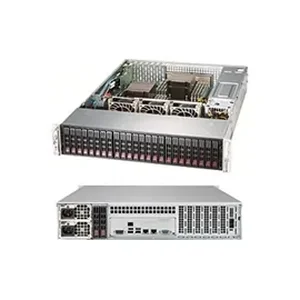

SSG-2029P-E1CR24H - Supermicro System SSG-2029P-E1CR24H 2U LGA3647 2TB DDR4 PCIE SATA 24Hot-swap 2.5 Brown Box

Motherboard
Super X11DPH-T Processor/Cache
CPU
Dual Socket P (LGA 3647)
Intel Xeon Scalable Processors,3 UPI up to 10.4GT/s
Support CPU TDP 70-205W
Cores
Up to 28 Cores with Intel HT Technology
System Memory
Memory Capacity
16 DIMM slots
Up to 2TB ECC 3DS LRDIMM, 512GB ECC RDIMM, DDR4 up to 2666MHz
Memory Type
2666/2400/2133MHz ECC DDR4 SDRAM
On-Board Devices
Chipset
Intel C624 chipset
SAS
SAS3 (12Gbps) via Broadcom 3108 AOC HW RAID
RAID 0, 1, 5, 6, 10, 50, 60
SATA
SATA3 (6Gbps) RAID 0, 1, 5, 10
Network Controllers
Dual 10GBase-T LAN ports with Intel X722 + PHY Intel X557
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
ASPEED AST2500 BMC
Input / Output
LAN
2 RJ45 10GBase-T LAN ports
1 RJ45 Dedicated IPMI LAN port
USB
4 USB 3.0 ports (rear)
1 Type A
Video
1 VGA port
Serial Port / Header
1 Fast UART 16550 port / 1 Header
System BIOS
BIOS Type
256Mb AMI UEFI
Management
Software
Intel Node Manager
IPMI 2.0
NMI
SPM, SUM
SuperDoctor 5
Watchdog
PC Health Monitoring
CPU
Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator
FAN
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature
Monitoring for CPU and chassis environment
Thermal Control for 8x fan connectors
Chassis
Form Factor
2U Rackmount
Model
CSE-216BE1C4-R1K23LPB
Dimensions
Available Colors
Black
Front Panel
Buttons
Power On/Off button
System Reset button
LEDs
Power status LED
Hard drive activity LED
Network activity LEDs
System Overheat LED
Power fail LED
Expansion Slots
PCI-Express
3 PCI-E 3.0 x16 slot
4 PCI-E 3.0 x8 slots
Slot 2 3 occupied by controller and JBOD Expansion Port
Drive Bays
Hot-swap
24 Hot-swap 2.5" SAS3/SATA3 drive bays
Optional
2 Optional Onboard NVMe M.2
Backplane
SAS3 12Gb/s direct attached storage backplane, w/ 24x SAS3 2.5" drive slots
System Cooling
Fans
3 Hot-swap 8cm redundant PWM cooling fans
Power Supply (76mm Width)
1200W Redundant Power Supplies with PMBus
Total Output Power
1000W/1200W
Dimension(W x H x L)
76 x 40 x 336 mm
Input
100-127Vac / 15-12A / 50-60Hz
200-240Vac / 8.5-7A / 50-60Hz
+12V
Max: 83A / Min: 0A (100-127Vac)
Max: 100A / Min: 0A (200-240Vac)
+5Vsb
Max: 4A / Min: 0A
Output Type
19 Pairs Gold Finger Connector
Certification
UL/cUL/CB/BSMI/CE/CCC
Titanium Level
Operating Environment
RoHS
RoHS Compliant
Environmental Spec.
Operating Temperature: 10^oC - 35^oC (50^oF - 95^oF)
Non-operating Temperature: -40^oC to 60^oC (-40^oF to 140^oF)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Item Dimension (L inchxW inchxH inch)
25 x 18 x 15 Weight
61.00lb Warranty Information
1 Year
