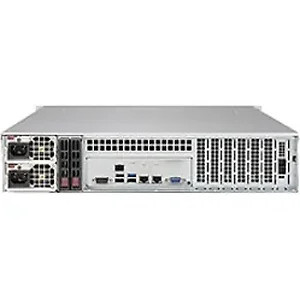

SSG-2029P-ACR24L - Supermicro 2U RM BB BLACK XEON 2666MHZ 24X

Motherboard
Super X11DPH-T

Processor/Cache
CPU
Dual Socket P (LGA 3647)
2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors,3 UPI up to 10.4GT/s
Support CPU TDP 70-205W
Cores
Up to 28 Cores
Note
BIOS version 3.2 or above is required to support 2nd Gen Intel Xeon Scalable processors (codenamed Cascade Lake-R)

System Memory
Memory Capacity
16 DIMM slots
Up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
Supports Intel Optane^TM DCPMM
Memory Type
2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note
2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
Cascade Lake only. Contact your Supermicro sales rep for more info.

On-Board Devices
Chipset
Intel C622 chipset
SAS
SAS3 (12Gbps) via Broadcom 3008 AOC
3 Broadcom 3008 controller
SATA
SATA3 (6Gbps), RAID 0, 1, 5, 10
Network Controllers
Dual 10GBase-T LAN ports with Intel X722 + PHY Intel X557
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
ASPEED AST2500 BMC

Input / Output
LAN
2 RJ45 10GBase-T LAN ports
1 RJ45 Dedicated IPMI LAN port
USB
4 USB 3.0 ports (rear)
1 Type A
Video
1 VGA port
Serial Port / Header
1 Fast UART 16550 port / 1 Header

System BIOS
BIOS Type
256Mb AMI UEFI

Management
Software
Intel Node Manager
IPMI 2.0
NMI
SPM, SUM
SuperDoctor 5
Watchdog

PC Health Monitoring
CPU
Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator
FAN
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature
Monitoring for CPU and chassis environment
Thermal Control for fan connectors

Chassis
Form Factor
2U Rackmount
Model
CSE-216BTS-R1K23LPB

Available Colors
Black

Front Panel
Buttons
Power On/Off button
System Reset button
LEDs
Power status LED
Hard drive activity LED
Network activity LEDs
System Information LED
Power fail LED

Expansion Slots
PCI-Express
3 PCI-E 3.0 x16 slot
4 PCI-E 3.0 x8 slots

Drive Bays
Hot-swap
24 Hot-swap 2.5" SAS3/SATA3 drive bays
Optional
2 Optional Onboard NVMe M.2

Backplane
SAS3 12Gb/s direct attached storage backplane, w/ 24x SAS3 2.5" drive slots

System Cooling
Fans
3 Hot-swap 8cm redundant PWM cooling fans

Power Supply (76mm Width)
1200W Redundant Power Supplies with PMBus
Total Output Power
1000W/1200W
Input
100-127Vac / 15-12A / 50-60Hz
200-240Vac / 8.5-7A / 50-60Hz
200-240Vdc / 8.5-7A (for CCC only)
+12V
Max: 83A / Min: 0A (100-127Vac)
Max: 100A / Min: 0A (200-240Vac)
Max: 100A / Min: 0A (200-240Vdc)
+5Vsb
Max: 4A / Min: 0A
Output Type
19 Pairs Gold Finger Connector
Certification
Titanium Level

Operating Environment
RoHS
RoHS Compliant
Environmental Spec.
Operating Temperature:
10^oC - 35^oC (50^oF - 95^oF)
Non-operating Temperature:
-40^oC to 60^oC (-40^oF to 140^oF)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)

Weight
61.00 lb

Warranty Information
1 Year
