Technical Specifications

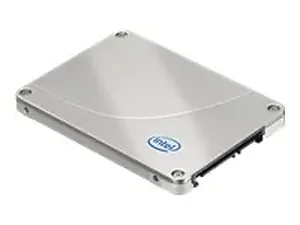

OLR 120GB 320 SSD SATA2 G3 2.5IN MLC 9.0MM KIT
Based on its industry-leading 25-nanometer (nm) NAND flash memory, the Intel SSD 320 replaces and builds on its high-performing Intel X25-M SATA SSD. Delivering more performance and uniquely architected reliability features, the Intel SSD 320 offers higher capacity, while taking advantage of cost benefits from its 25nm process with an up to percent price reduction over its current generation.
*
MAIN SPECIFICATIONS
Product Description Intel Solid-State Drive 320 Series - solid state drive - 120 GB - SATA-300
Type Solid state drive - internal
Form Factor 2.5"
Dimensions (WxDxH) 2.8 in x 3.9 in x 0.4 in
Weight 3.1 oz
Capacity 120 GB
Interface Type Serial ATA-300
General
Device Type Solid state drive - internal
Width 2.8 in
Depth 3.9 in
Height 0.4 in
Weight 3.1 oz
Hard Drive
Form Factor 2.5"
Capacity 120 GB
Interface Type Serial ATA-300
Features Native Command Queuing (NCQ), multi-level cell (MLC) flash
Compliant Standards S.M.A.R.T.
Performance
Internal Data Rate 270 MBps (read) / 130 MBps (write)
Reliability
MTBF 1,200,000 hour(s)
Expansion / Connectivity
Interfaces 1 x Serial ATA-300
Compatible Bays 1 x internal - 2.5"
Miscellaneous
Compliant Standards CE, UL, VCCI, C-Tick, BSMI, WHQL, RoHS, KCC
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 158 °F
Humidity Range Operating 5 - 95%
Shock Tolerance 1500 g @ 0.5ms (operating) / 1500 g @ 0.5ms (non-operating)
Vibration Tolerance 2.17 g @ 5-700 Hz (operating) / 3.13 g @ 5-800 Hz (non-operating)
