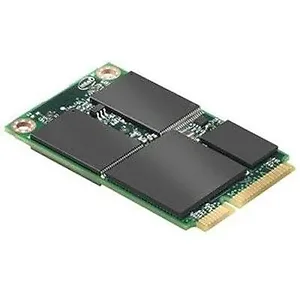

SSDMAESC020G201 - Intel 311 SERIES 20GB SSD GEN2 SLC MSATA 30GB S CASELESS

BLK 20GB 311 SSD MSATA G2 2.5IN MLC PCIE
The Intel SSD 311 Series combines Intel 34nm SLC NAND Flash Memory technology with innovative high-performance controller to deliver a high-performance, high-endurance solid-state drive (SSD) targeted for solutions that use an SSD as a cache for hard disk drives, such as systems with Intel Smart Response technology, or for high-performance embedded solutions.
*
MAIN SPECIFICATIONS
Product Description Intel Solid-State Drive 311 Series - solid state drive - 20 GB - PCI Express Mini Card
Type Solid state drive - internal
Dimensions (WxDxH) 2 in x 1.2 in x 0.1 in
Weight 0.4 oz
Capacity 20 GB
Interface Type PCI Express Mini Card
Microsoft Certification Compatible with Windows 7
General
Device Type Solid state drive - internal
Width 2 in
Depth 1.2 in
Height 0.1 in
Weight 0.4 oz
Hard Drive
Capacity 20 GB
Interface Type PCI Express Mini Card
Features Native Command Queuing (NCQ), single-level cell (SLC) flash
Compliant Standards S.M.A.R.T.
Performance
Internal Data Rate 200 MBps (read) / 105 MBps (write)
Reliability
MTBF 1,200,000 hour(s)
Expansion / Connectivity
Interfaces 1 x Serial ATA-300
Compatible Bays 1 x internal
Compatible Slots 1 x Mini PCI Express
Miscellaneous
Compatible with Windows 7 "Compatible with Windows 7" software and devices carry Microsoft�s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7.
Compliant Standards CE, UL, VCCI, C-Tick, BSMI, WHQL, RoHS, KCC
Environmental Parameters
Min Operating Temperature 32 �F
Max Operating Temperature 158 �F
Humidity Range Operating 5 - 95%
Shock Tolerance 1500 g @ 0.5ms (operating) / 1500 g @ 0.5ms (non-operating)
Vibration Tolerance 2.17 g @ 5-700 Hz (operating) / 3.13 g @ 5-800 Hz (non-operating)
