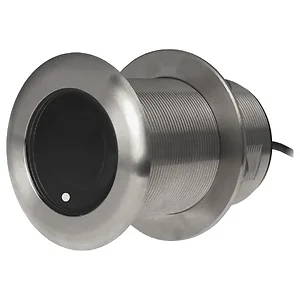

SS175C-20-MW-12F - Airmar SS175 Medium Tilt CHIRP Transducer

Airmar SS175 Medium Tilt CHIRP Transducer - 20 Degree with Raymarine 11-Pin Connector

The Airmar SS175 Medium Tilt CHIRP Transducer is designed to deliver exceptional performance in various fishing conditions. This innovative transducer utilizes a medium frequency (60-100 kHz) with a fixed 20-degree tilt angle, suitable for hull deadrise ranging from 16 to 24 degrees. It features an advanced depth tracking capability down to 400 meters and includes a fast-response water-temperature sensor.

The design incorporates a unique ultra-wide beamwidth of 57 to 73 degrees (port/starboard) and provides effective fish-target separation for superior mid-depth performance. With its low-profile, thru-hull housing, it allows for excellent resolution while the vessel is in motion when installed correctly.

Ideal for anglers seeking deeper species, the SS175 is an excellent addition when paired with other popular models from Airmar, creating a comprehensive suite of frequencies suitable for both shallow and deep water fishing.

Specifications:

• Power Rating: 1 kW
• Max Deadrise Angle: 24�
• Housing: Stainless Steel
• Functions: Depth, Temperature
• Max Vessel Loa: Up to 11 m (36')
• Hole Size: 95 mm (3-3/4')
• Mounting Style: Tilted Element Thru-Hull
• Max Depth: 400 m (1,300')

The Airmar SS175 Medium Tilt CHIRP Transducer is a thru-hull transducer designed for marine applications, specifically for anglers and vessel operators requiring enhanced depth tracking and fish-finding capabilities. This unit operates within a medium frequency range of 60-100 kHz and can track depths down to 400 meters. It incorporates a fixed 20-degree tilt angle, making it suitable for hulls with a deadrise between 16 and 24 degrees. The SS175C-20-MW-12F features an ultra-wide beamwidth of 57 to 73 degrees (port/starboard), which contributes to effective fish-target separation, particularly in mid-depth ranges. Its low-profile, stainless steel housing is designed to maintain resolution while the vessel is in motion. Additionally, it includes a fast-response water-temperature sensor. This transducer is compatible with Raymarine 11-Pin Mix-N-Match cables and is rated for vessels up to 11 meters (36 feet) in length.
