SS175C-12-MW-HB - Airmar SS175C-12-MW 12d Tilt Medium CHIRP Ultra Wide With Humminbird 9-Pin MMC

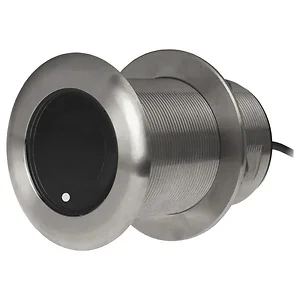

Airmar SS175MW Medium Ultra-Wide 12 deg Tilted Element™ Thru-Hull - With MMC-HB Humminbird 9-Pin Mix-N-Match Cable

• Fixed 12° tilted version for 8° to 15° hull deadrise
• Depth and fast-response water-temperature sensor
• 1 kW with depth tracking down to 400 m (1,300#39;)
• Medium frequency: 60-100 kHz
• 57° to 73° beamwidth (port/starboard)
• 16° average fore/aft
• 40 kHz of total bandwidth from one transducer
• Medium frequency for superior mid-depth performance and excellent fish-target separation
• Low-profile, thru-hull housing yields good resolution at speed when installed properly
• Exclusive Xducer ID® technology

AIRMAR’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready SS175 Medium Ultra-Wide (MW) Tilted Element™ Thru-hull transducer. The SS175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.

Airmar’s new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.

The SS175MW Tilted Element Thru-hull is a 1 kW transducer housed in one of AIRMAR’s most popular Tilted Element housings which includes a ceramic element fixed at a 20°, 12° or 0° angle. Because the transducer is installed almost flush to the hull, the tilted element corrects for the hull deadrise and orients the ceramic element vertically to ensure maximum echo returns to the transducer.

• SS175C-12-MW-MM Medium CHIRP 12° Tilted Element
• MMC-HB Humminbird 9-Pin Mix-N-Match Cable

The Airmar SS175C-12-MW-HB is a 1 kW thru-hull transducer designed for marine applications, providing depth and water temperature data. This unit features a fixed 12-degree tilted element, suitable for hulls with an 8- to 15-degree deadrise, ensuring proper vertical orientation for optimal performance. It operates on a medium CHIRP frequency band of 60-100 kHz, offering 40 kHz of total bandwidth. This frequency range is engineered for superior mid-depth performance and enhanced fish-target separation, particularly beneficial for locating pelagic species in the upper water column.

With a maximum depth tracking capability of 400 meters (1,300 feet), the SS175C-12-MW-HB is suitable for vessels up to 11 meters (36 feet) in length. Its ultra-wide beamwidth, ranging from 57 to 73 degrees port/starboard and 16 degrees average fore/aft, maximizes coverage under the boat. The low-profile, stainless steel housing is compatible with all hull materials and includes a Humminbird 9-pin Mix-N-Match cable for integration with compatible systems. This transducer is intended for professional marine users requiring reliable underwater imaging and data acquisition.
