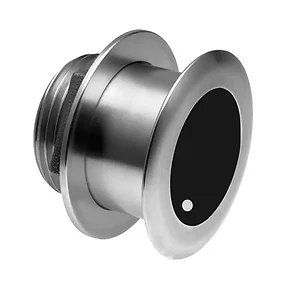

Airmar SS175C-12-HW 12d Tilt

High Wide CHIRP with Humminbird 14-Pin

• Depth and fast-response water-temperature sensor
• 1 kW with a maximum depth of 152 m (500')
• High Frequency: 150 kHz to 250 kHz = Constant 25° beamwidth
• 100 kHz of total bandwidth from one transducer
• Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth
• High frequency provides superior shallow water performance, bottom detail and fish target separation
• High wide beamwidth provides more coverage under the boat for detecting fish in the upper water column
• Low-profile thru-hull housing provides good resolution at speed when installed properly
• Stainless steel housing for use on stepped, planing or displacement hulls made of fiberglass, wood or metal
• Recommended boat size: Up to 11 m (36')
• Also available in transom-mount (TM185HW), in-hull (M285HW) and bronze housing (B175HW) models
• Exclusive Xducer ID® technology

Get more coverage under your boat with Airmar’s unique wide beam, high frequency Chirp-ready transducers. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high frequency band results in superior resolution. The constant wide beamwidth provides twice the coverage under the boat and excellent fish arches on the display compared to most high frequency narrow beam transducer options.

The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 500'.

Tilted element transducers have the element fixed at either a 20°, 12° or 0° angle within the transducer housing. Because the transducer is installed almost flush to the hull, when the transducer is installed the tilt corrects for the hull deadrise and orients the ceramic element horizontally to assure maximum echo returns to the transducer.

The Airmar SS175C-12-HW 12d Tilt High Wide CHIRP transducer is designed for marine applications requiring detailed depth and water temperature data. This thru-hull unit operates at 1 kW, providing a maximum depth capability of 152 meters (500 feet). It utilizes a high-frequency CHIRP range from 150 kHz to 250 kHz, maintaining a constant 25� beamwidth across this band. This configuration is suitable for detecting fish in the upper water column and offers enhanced bottom detail, particularly in shallow water. The SS175C-12-HW-14HB model features a 12� tilted element, which corrects for hull deadrise between 8� and 15�, ensuring proper orientation for optimal echo returns. Its stainless steel housing is compatible with fiberglass, wood, or metal hulls, and it is recommended for boats up to 11 meters (36 feet) in length. This transducer is equipped with a Humminbird 14-pin connector and Airmar's Xducer ID� technology.
