SS175C-0-MW-10F - Airmar SS175C-0-MW 0d Tilt Medium CHIRP Ultra Wide With Furuno 10-Pin MMC

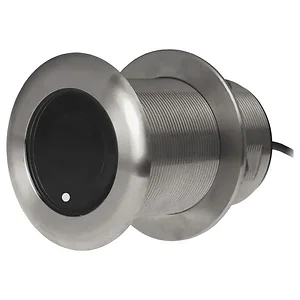

Airmar SS175MW Medium Ultra-Wide 0 deg Tilted Element™ Thru-Hull - With MMC-10F Furuno 10-Pin Mix-N-Match Cable

• Fixed 0° tilted version for 0° to 7° hull deadrise
• Depth and fast-response water-temperature sensor
• 1 kW with depth tracking down to 400 m (1,300#39;)
• Medium frequency: 60-100 kHz
• 57° to 73° beamwidth (port/starboard)
• 16° average fore/aft
• 40 kHz of total bandwidth from one transducer
• Medium frequency for superior mid-depth performance and excellent fish-target separation
• Low-profile, thru-hull housing yields good resolution at speed when installed properly
• Exclusive Xducer ID® technology

AIRMAR’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready SS175 Medium Ultra-Wide (MW) Tilted Element™ Thru-hull transducer. The SS175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.

Airmar’s new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.

The SS175MW Tilted Element Thru-hull is a 1 kW transducer housed in one of AIRMAR’s most popular Tilted Element housings which includes a ceramic element fixed at a 20°, 12° or 0° angle. Because the transducer is installed almost flush to the hull, the tilted element corrects for the hull deadrise and orients the ceramic element vertically to ensure maximum echo returns to the transducer.

• SS175C-0-MW-MM Medium CHIRP 0° Tilted Element
• MMC-10F Furuno 10-Pin Mix-N-Match Cable

The Airmar SS175C-0-MW is a 1 kW thru-hull transducer designed for marine applications requiring depth and water temperature data. This unit features a fixed 0-degree tilted element, suitable for hulls with a 0 to 7-degree deadrise, ensuring proper vertical orientation for optimal echo returns. Operating on a medium CHIRP frequency range of 60-100 kHz, it provides 40 kHz of total bandwidth. The transducer offers a wide beamwidth of 57-73 degrees port/starboard and 16 degrees average fore/aft, which is beneficial for identifying pelagic species in the upper water column and achieving broad coverage under the vessel. It tracks depth down to 400 meters (1,300 feet) and includes a fast-response water temperature sensor. The SS175C-0-MW-10F comes with a Furuno 10-Pin Mix-N-Match Cable, making it compatible with specific Furuno systems. This stainless steel housing transducer is suitable for all hull materials and vessels up to 11 meters (36 feet) LOA.
