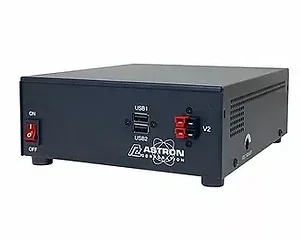

Astron SS-30-AP Switchign Desktop Power Supply
Model: SS30-APThe SS-30 model supports currents up to 25A avg and peak up to 30A ICS (*) peak max. It is ideally suited for use with 12/13.8 VDC communications equipment. Switching technology >82% efficient meets individual power loading requirements. Included is special filter circuitry especially suited for all communications frequencies and HF.
Several protection features are built-in. Included are output current limiting, overvoltage protection, internal fuse protection, and over temperature shutdown.
Integration is seamless with standard 12/13.8 VDC equipment. Front panel 'Anderson Power Pole'; terminals and rear panel screw-wire terminals are heavy duty. Connectors are easy accessible which ensures safe and reliable installation.
Specifications| Input voltage | 120 to 230 VAC, 50/60Hz (Nominal Automatic Wide-Range selected) |
| Output voltage | 13.8 VDC (User manual adjustable ± 1 V) 2 USB ports: 5.2V, 1.5A per port |
| Output current | 30A peak current - ICS Intermittent Communication Service 25 Amp Max Continuous |
| Temperature | 0 to +50 C Operating, —20 to +85 C Storage 120 C max over-temperature setting |
| Humidity | 5 to 90% RH Operating, 5 to 95% RH Storage (Non-condensing) |
| Dimensions | 2 5/8 in H x 7 in W x 8 1/4in D |
The Astron SS-30-AP is a switching mode desktop power supply designed for IT and communications environments requiring stable 12VDC power. It converts 120-230 VAC input to a nominal 13.8 VDC output, adjustable by � 1V, suitable for powering 12/13.8 VDC communications equipment. This unit delivers a continuous current of 25A and supports peak loads up to 30A ICS. Its >82% efficiency and integrated filter circuitry are designed to minimize interference, particularly for HF communications frequencies. Built-in protections include output current limiting, overvoltage protection, internal fuse protection, and over-temperature shutdown. Connectivity is facilitated by front panel 'Anderson Power Pole' terminals and rear panel heavy-duty screw-wire terminals, ensuring reliable integration with existing systems. Two 5.2V, 1.5A USB ports are also included for auxiliary power needs.
The Astron SS-30-AP is ideally suited for use with standard 12/13.8 VDC communications equipment. Its output voltage is adjustable, allowing for integration with various devices within that voltage range.
This power supply features front panel 'Anderson Power Pole' terminals and rear panel heavy-duty screw-wire terminals for connecting equipment. Additionally, it includes two USB ports, each providing 5.2V at 1.5A.
The Astron SS-30-AP provides a maximum continuous output current of 25 Amps. It can support peak currents up to 30 Amps, designated for Intermittent Communication Service (ICS).
Yes, the unit includes several built-in protection features. These consist of output current limiting, overvoltage protection, internal fuse protection, and over-temperature shutdown to safeguard connected equipment and the power supply itself.
