SRT3000RMXLT-5KTF - Apc - Schneider Electric Schneider Electric 3kVA 4U Rack Smart-UPS With Transformer SRT3000RMXLT-5KT

Product Information

• Part Number: SRT3000RMXLT-5KTF
• Manufacturer: Schneider Electric (APC by Schneider Electric)
• Product Name: Schneider Electric 3kVA 4U Rack Smart-UPS With Transformer SRT3000RMXLT-5KTF 208V To 120V
• Device Type: Uninterruptible Power Supply (UPS)
• Topology: Double Conversion Online
• Form Factor: Rackmount

Product Description

The Schneider Electric Smart-UPS SRT 3000VA RM is a high-density, double-conversion online UPS engineered to provide premium power protection for critical IT equipment. The SRT3000RMXLT-5KTF specifically includes an integrated step-down transformer, enabling it to accept a 208V input and provide both 208V and 120V output to connected devices, making it highly versatile for mixed voltage environments. Its online topology ensures a consistent, pure sine wave output, completely isolating connected loads from all power disturbances and delivering the highest level of power quality. This 4U rackmount unit is designed for efficient deployment in server rooms, network closets, and data centers, offering robust runtime scalability with external battery packs and comprehensive network management capabilities via its included network card.

Product Specifications

• Output Power Capacity: 2.7 kW / 3000 VA
• Nominal Output Voltage: 120V, 208V, 240V (Configurable to 220V, 230V)
• Output Voltage Distortion: Less than 2% full load
• Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz
• Waveform Type: Sine wave
• Transfer Time: 0 ms
• Nominal Input Voltage: 208V
• Input Frequency: 50/60 Hz +/- 5 Hz (auto sensing)
• Input Connection Type: NEMA L6-20P
• Input Voltage Range (adjustable for mains operation): 140 - 276V
• Other Input Voltages: 220V, 240V
• Output Connections: {'NEMA 5-20R': '6', 'NEMA L6-20R': '1', 'NEMA L6-30R': '1'}
• Bypass: Internal Bypass (automatic and manual)
• Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
• Typical Recharge Time: 3 hour(s)
• Battery Life (Years): 3 - 5
• Interface Port(s): RJ-45 10/100 Base-T, Serial (RJ45), Smart-Slot, USB
• Control Panel: Multi-function LCD status and control console
• Audible Alarm: Audible and visible alarms prioritized by severity
• Emergency Power Off (EPO): Yes
• Rack Height: 4U
• Color: Black
• Dimensions (H x W x D): 6.85 inches (174 mm) x 17 inches (432 mm) x 28.35 inches (720 mm)
• Net Weight: 119.05 lbs (54 kg)
• Operating Temperature: 0 - 40 ?C (32 - 104 ?F)
• Operating Relative Humidity: 0 - 95 %
• Approvals: CE, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE

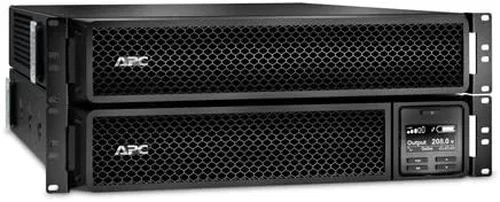

Product may differ from image shown

The Schneider Electric 3kVA 4U Rack Smart-UPS With Transformer SRT3000RMXLT-5KTF is a double-conversion online Uninterruptible Power Supply (UPS) designed for critical IT infrastructure. This unit provides premium power protection by isolating connected loads from power disturbances, ensuring a consistent pure sine wave output. It is suitable for server rooms, network closets, and data centers requiring high-quality power and flexible voltage distribution. A key feature is its integrated step-down transformer, which allows the UPS to accept a 208V input and deliver both 208V and 120V output to connected devices. This makes the SRT3000RMXLT-5KTF particularly useful in environments with mixed voltage requirements. The 4U rackmount form factor facilitates efficient deployment, and the UPS offers runtime scalability through external battery packs. Comprehensive network management capabilities are included via its network card, providing IT professionals with control and monitoring features.
