General Information
Manufacturer:Schneider Electric SA
Manufacturer Part Number:SRT2200XLA
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Line:Smart-UPS

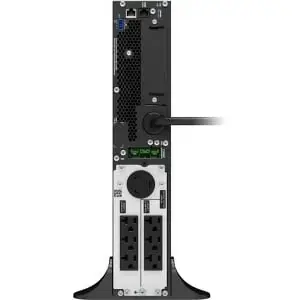

Product Name:Smart-UPS SRT 2200VA 120V
Marketing Information:Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
Product Type:Double Conversion Online UPS
Technical Information
Receptacle Type:
Receptacle Detail:
- 6 x NEMA 5-20R
- 1 x NEMA L5-20R
Power Description
Load Capacity:2200 VA/1800 W
Input Voltage:120 V AC
Output Voltage:120 V AC
Waveform Type:Sine Wave
Battery Information
Battery Chemistry:Lead Acid
Typical Battery Recharge Time:3 Hour
Physical Characteristics
Product Color:Black
Height:17"
Width:3.3"
Depth:23"
Form Factor:Tower
Weight (Approximate):55.12 lb
Miscellaneous
Package Contents:
Smart-UPS SRT 2200VA 120V CD with softwareDocumentation CDInstallation guideRemovable support feetUSB cableWarranty cardEnergy Star:Yes
Environmentally Friendly:Yes
Environmental Certification:
Warranty
Limited Warranty:3 Year
