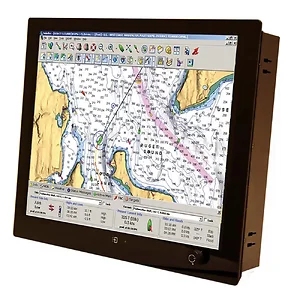

17" Touch Screen Display with Sunlight Readability
The Seatronx rugged multi-input display is designed for durability and excellent visibility in bright environments, making it ideal for modern glass bridge helms ranging from 12" to 27". This display integrates seamlessly with GARMIN systems, providing a top-tier navigation solution with the GPSMAP® 8700 processor and Seatronx SRT series features.
Key Attributes:
- Panel mount and VESA mount compatible
- Dimensions: 15.62" x 13.46" x 2.28"
- Cutout dimensions: 14.92" x 12.75" x 2.40"
- Projected capacitive touch technology
- Optically bonded for improved clarity
- Available with optional remote control
Specifications Overview:
- Diagonal active area: 17"
- Native resolution: 1280x1024 pixels
- Contrast ratio: 1000:1
- Brightness: 1500 nits
- Viewing angles: 85° (left/right), 80° (up/down)
- Backlight dimming capabilities
- Backlight lifetime: 50,000 hours
- Input connections: HDCP HDMI, DVI, VGA, composite
- Power source: 9-34V
- Power consumption: 3A at 24VDC
- DC power inlet: Screw terminal connection
- Front sealing: IP68 rating with potentiometer
- Operating temperature: -30 to 85°C
- Storage temperature: -30 to 85°C
