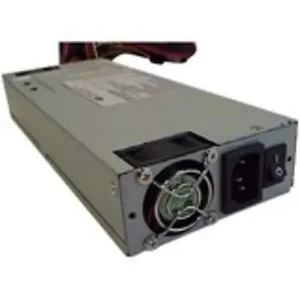

Technical Specifications
Dielectric Withstand:
Primary frame ground 1800V AC for 1 second
Efficiency:
Typical up to 85% Rise time:
Less than 20ms
Hold-up Time:
16 ms minimum at nominal input voltage Power Good Signal:
Power on delay time 100 500ms, off delay 1ms minimum (TTL and CMOS compatible)
Leakage Current:
Less than 3.5mA at 264Vac, 63Hz MTBF:
100,000 hours on maximum load at +25C
Input Range:
90 264Vac, Full Range Input Frequency:
47 - 63Hz
Input Current:
Max 10A 115Vac, 5.0A 230Vac
Inrush Current:
No Damage Output Voltage/ Minimum Load/ Normal Load/ Maximum Load/ Load Reg/ Ripple Noise
+3.3V/ 0.5A / 12A/ 24A / +/- 5%/ 50mV P-P
+5V/ / 0.5A / 15A/ 30A / +/- 5%/ 50mV P-P
+12V1/ 0.5A / 7.5A/ 16A / +/- 5%/ 120mV P-P
+12V2/ 0.5A / 7.5A/ 16A / +/- 5%/ 120mV P-P
+12V3/ 0.5A / 7.5A/ 16A / +/- 5%/ 120mV P-P
+12V4/ 0.5A / 7.5A/ 16A / +/- 5%/ 120mV P-P
-12V/ 0.05A / 0.25A/ 0.5A / +/- 10%/ 120mV P-P
+5Vsb/ / 0.1A / 2.0A/ 4.0A / +/- 5%/ 500mV P-P Dimensions (L"xW"xH"):
25 x 21.5 x 7
Weight:
5.0 lb
Warranty Information:
1 Year
