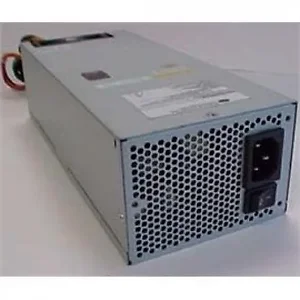

Sparkle Power SPI600W7BB-B204 SPI Power Supply SPI600W7BB-B204 600W ATX EPS12V 2U Fan Active PFC 80PLUS BRONZE

Temperature Range
Operating: 0C +50C on full load storage shipping: -20C +80C Humidity
85% on operating, 95% on storage Dialectic Withstand
Primary frame ground 1800V AC for 2 second Efficiency
Typical Over 85% Rise Time
Less than 20ms Hold-Up Time
16ms Minimum at Nominal Input Voltage Power Good Signal
Power on delay time 100 500ms, off delay 1ms minimum (TTL and CMOS compatible) Leakage Current
Less than 3.5mA at 264Vac, 50Hz MTBF
100,000 hours on maximum load at +25C Input Characteristics
Input Range: 90 to 264V AC Full Range Input
Frequency: 47 to 63Hz
Input Current: Max 10A at 115V AC, 5.0A at 230V AC
Inrush Current: No Damage Output Characteristics:
+3.3V:
- Minimum Load: 0.3A
- Normal Load: 12A
- Maximum Load: 25A
- Load Reg.: +/-5%
- Ripple and Noise: 50mV P-P
+5V:
- Minimum Load: 1.0A
- Normal Load: 12A
- Maximum Load: 25A
- Load Reg.: +/-5%
- Ripple and Noise: 50mV P-P
+12V1:
- Minimum Load: 1.0A
- Normal Load: 8.0A
- Maximum Load: 16A
- Load Reg.: +/-5%
- Ripple and Noise: 120mV P-P
+12V2:
- Minimum Load: 1.0A
- Normal Load: 8.0A
- Maximum Load: 16A
- Load Reg.: +/-5%
- Ripple and Noise: 120mV P-P
+12V3:
- Minimum Load: 1.0A
- Normal Load: 8.0A
- Maximum Load: 16A
- Load Reg.: +/-5%
- Ripple and Noise: 120mV P-P
-12V:
- Minimum Load: 0.0A
- Normal Load: 0.25A
- Maximum Load: 0.5A
- Load Reg.: +/-10%
- Ripple and Noise: 120mV P-P
+5Vsb:
- Minimum Load: 0.0A
- Normal Load: 1.5A
- Maximum Load: 3.0A
- Load Reg.: +/-5%
- Ripple and Noise: 50mV P-P
+3.3V and +5V total output not exceed 150W
+12V1 and +12V2 , +12V3 total output not exceed 48A
Total output for this subject power supply is 600W Item Dimension (L"xW"xH")
9.4 x 3.9 x 2.7

Weight
6.00 lb

Warranty Information
1 Year
