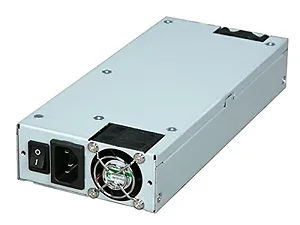

SPI4601UG-B204 - Sparkle Power 460W 1U POWER SUPPLY

Dielectric Withstand:
Primary frame ground 1800V AC for 1 second

Efficiency:typical > 85%

Rise time:Less than 20ms Hold-up Time: 20ms minimum at nominal input voltage

Power Good Signal: Power on delay time 100 - 500ms, off delay 1ms minimum (TTL and CMOS compatible) Leakage Current: Less than 3.5mA at 264Vac, 50Hz

MTBF: <00,000 hours on maximum load at +25C Input Range: 90 - 264Vac, Full Range Input

Frequency:47 - 63Hz

Input Current: Max 8A at 115Vac, 4A at 230Vac

Inrush Current: No damage. Output Voltage/Minimum Load/Normal Load/Maximum Load/Load Reg./Ripple and Noise
+3.3V/0.5A/10A/20A/+ or - 5%/50mV P-P
+5V/0.5A/10A/20A/+ or - 5%/50mV P-P
+12V1/1.0A/8A/16A/+ or - 5%/120mV P-P
+12V2/1.0A/8A/16A/+ or - 5%/120mV P-P
+12V3/1.0A/8A/16A/+ or - 5%/120mV P-P
+12V/0.0A/0.25A/0.5A/+ or - 10%/120mV P-P
+5Vsb/0.0A/1.25A/2.5A/+ or - 5%/50mV P-P Item Dimension (L"xW"xH"):
8.7 x 3.9 x 1.6

Weight:
4.0 lb

Warranty Information
1 Year
