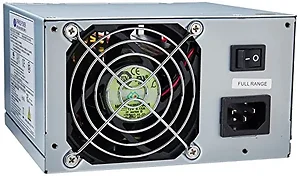

SPI400A8BB-B204 - Sparkle Power SPI Power Supply 400A8BB-B204 400W ATX SATA Active PFC 80PLUS BRONZE

Input Characteristics
Input Range: 90 - 264Vac (RMS), Full Range Input
Frequency: 47 - 63Hz
Input Current: Max 6A (RMS) at 115Vac, 3A (RMS) at 230Vac Dielectric Withstand:
Primary frame ground 1800V AC for 2 second

Efficiency:
Typical up to 85%.

Rise time:
Less than 20ms Hold-up Time:
17ms minimum at nominal input voltage

Power Good Signal:
Power on delay time 100 - 500ms, off delay 1ms minimum (TTL and CMOS compatible) Leakage Current:
Less than 3.5mA at 264Vac, 50Hz

MTBF:
100,000 hours on maximum load at +25C Output Voltage /Minimum Load /Normal Load /Maximum Load /Load Reg. /Ripple and Noise
+3.3V - 0.1A /10.5A /21A /+ or - 5% /50mV P-P
+5V -0.2A /7.5A /20A /+ or - 5% /50mV P-P
+12V1 -0.1A /5.5A /16A /+ or - 5% /120mV P-P
+12V2 -0.5A /4.0A /16A /+ or - 5% /120mV P-P
-12V -0.0A /0.25A /0.5A /+ or - 10% /120mV P-P
-5V -0.0A /0.15A /0.3A /+ or - 10% /50mV P-P
+5Vsb -0.0A /1.25A /3.0A /+ or - 5% /50mV P-P Item Dimension (L"xW"xH"):
5.52 x 3.39 x 5.91

Weight:
4.0 lb

Warranty Information
1 Year
