SKU: HM0YGMNFW8 |  Mfg. Part: SPI300T8HNB-B204  | UPC: 677808600413  |
 1 Reviews  |     Share

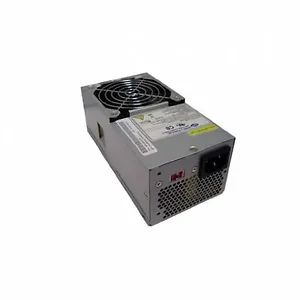

Sparkle Power SPI300T8HNB-B204 Sparkle SPI300T8HNB-B204 300W TFX12V Power Supply

Out of Stock
Condition: New

$68.48  $92.45
 Free Shipping for this Item

Product Overview

300W R-SPI300T8HNB-B204 TFX POWER SUPPLY RETAIL PK

Technical Specifications

Specifications
  • Mfr Part Number: SPI300T8HNB-B204
  • Features:
    • Complied with TFX12V standard
    • Compatible with European Union Directive 2002/95/EC (Restriction on Hazardous Substances)
    • Remote ON/OFF function
    • Internal 12V DC fan included
    • Noise Killer (thermal fan speed control function)
    • Low noise and ripple
    • Output over voltage, short circuit, and over current protection
    • 100% Hi-pot, ATE, and burn-in tested
    • Re-settable power shut down
    • Complies with FCC part 15 subpart J class B 115Vac operation, and CISPR 22 class B at 230Vac operation
    • Approved by CUL/UL60950-1, TUV EN60950-1, CB 60950-1 report, FCC, EMC
  • Input:
    • Input Range: 115~264V
    • Frequency: 47~63Hz
    • Input Current: Max 6.5A @ 115VAC, 4A @ 230VAC
    • Inrush Current: No damage
  • Output:
    • Total Watts: 300W
    • +3.3V @ 21A, +5V @ 15A, +12V1 @ 8A, +12V2 @ 14A, -12V @ 0.3A, +5Vsb @ 2A
    • +3.3V and +5V total output not exceed 103W
  • Dielectric Withstand: Primary to frame ground 1800V AC for 1 second
  • Rise Time: Less than 20ms
  • Hold-up Time: 17ms minimum at nominal input voltage
  • Power Good Signal: Power on delay time 100 ~ 500 ms, off delay 1ms minimum (TTL and CMOS compatible)
  • Leakage Current: Less than 3.5mA at 264 Vac, 50Hz
  • MTBF: 100,000 hours on maximum load at +25°C
  • Dimensions (WxLxH): 3.4 x 6.9 x 2.8 inch / 85.0 x 175.0 x 70.0 mm

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • SPARKLE POWER
  • SPI300T8HNB-B204
  • B0065SLJ06
  • 677808600413
  • New
  • 2.95 lbs
  • 13 X 5 X 8
  • Mar 07, 2026
  • Aug 22, 2020
Product Identifiers: Brand: Sparkle Power • Part #: SPI300T8HNB-B204 • UPC: 677808600413 • ASIN: B0065SLJ06 • Category: Monitor Supplies

Sparkle Power SPI300T8HNB-B204 Sparkle SPI300T8HNB-B204 300W TFX12V Power Supply

Reviews for Sparkle Power SPI300T8HNB-B204

$68.48
