Technical Specifications

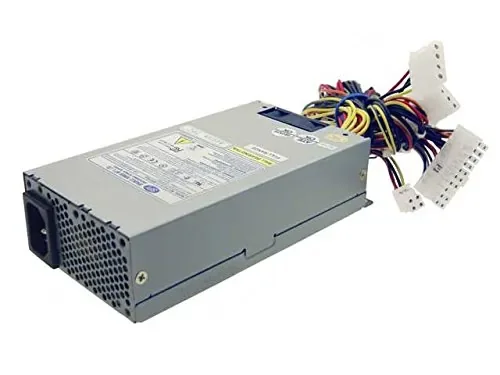

Model -- SPI270LE Specification : Temperature Range -- Operating: 0°C ~ +50°C on full load; storage & shipping: -20°C ~ +80°C Humidity -- 5 ~ 95% on operating and storage Dielectric Withstand -- Primary to Frame Ground 1800 VAC for 1sec Efficiency -- 80% minimum Rise time -- Less than 20ms Hold-up Time -- 17ms minimum at nominal input voltage Power Good Signal -- Power on delay time 100 ~ 500ms, off delay 1ms minimum (TTL and CMOS compatible) Leakage Current -- Less than 3.5mA at 264Vac, 50Hz MTBF -- 100,000 hours on maximum load at +25°C Dimensions (LxWxH) -- 150x81.5x40.5mm /6x3.2x1.6inch Input Characteristics: Input Range -- 90 ~ 264Vac, Full Range Input Frequency -- 47 ~ 63Hz Input Current -- Max 5A @ 115Vac, 3A @ 230Vac Inrush Current -- No damage
