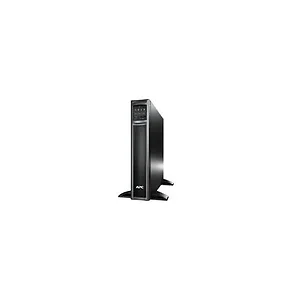

SMX750-NMC - Apc - Schneider Electric APC UPS SMX750-NMC Smart-UPS X 750VA Tower/Rack 120V with Bundled network manageme

Output
Output power capacity:600Watts / 750VA
Max Configurable Power (Watts) :600Watts / 0VA
Nominal Output Voltage:120V
Output Voltage Distortion:Less than 5%
Output Frequency (sync to mains) :50/60Hz +/- 3 Hz
Topology:Line Interactive
Waveform type:Sine wave
Output Connections: (8) NEMA 5-15R (Battery Backup) Input
Nominal Input Voltage:120V
Input frequency:50/60 Hz +/- 3 Hz (auto sensing)
Input Connections:NEMA 5-15P
Cord Length:8ft ( 2.44meters )
Input voltage range for main operations:82 - 143V
Input voltage adjustable range for mains operation:75 - 154V
Number of Power Cords:1
Maximum Short Circuit Withstand (Icw) :1000.0kAmps
Maximum Input Current:12.0A Batteries and Runtime
Battery type:Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Included Battery Modules:1
Typical recharge time:3hour(s)
Replacement Battery:APCRBC116
Battery Slots Empty:1
RBC Quantity:1
DC Overcurrent Protection:60A
Extendable Run Time:1
Battery Volt-Amp-Hour Capacity:312
Extended Run Options:APC-Smart-UPS-X-750VA-Tower-Rack-120V-with-bundled-network-management-card-NMC- Communications and Management
Interface Port(s):SmartSlot , USB
Pre-Installed SmartSlot^TM Cards:AP9630
Control panel:Multi-function LCD status and control console
Audible Alarm:Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency Power Off (EPO) :Yes Surge Protection and Filtering
Surge energy rating:645Joules
Filtering:Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449 Color
Black Environmental
Operating Environment:32-104^oF ( 0 - 40^oC )
Operating Relative Humidity:0 - 95 %
Operating Elevation:0-10000ft ( 0-3000meters )
Storage Temperature:-15-45^oC
Storage Relative Humidity:0 - 95 %
Storage Elevation:0-50000ft ( 0-15000meters )
Audible noise at 1 meter from surface of unit:40.0dBA
Online thermal dissipation:69.0BTU/hr Conformance
Approvals:cUL Listed, UL 1778 Sustainable Offer Status
RoHS:Compliant
REACH:REACH: Contains No SVHCs Item Dimension (L inchxW inchxH inch)
25 x 24 x 10

Weight
58.30lb

Warranty Information
3 years repair or replace (excluding battery) and 2 year for battery
