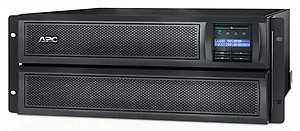

SMX3000HV - Apc - Schneider Electric THE 3KVA LINE INTERACTIVE 4U RACK/TOWER UPS PROVIDES PURE SINE WAVE POWER TO SUP

Output
Output Power Capacity:2700 Watts / 3000 VA
Max Configurable Power:2700 Watts / 3000 VA
Nominal Output Voltage:230V
Output Voltage Distortion:Less than 5%
Output Frequency (sync to mains):50/60Hz +/- 3 Hz
Other Output Voltages:208, 220, 240
Crest Factor:3 : 1
Topology:Line Interactive
Waveform Type:Sine wave

Output Connections:
(8) IEC 320 C13
(2) IEC 320 C19
(2) IEC Jumpers Input
Nominal Input Voltage:208V, 230V
Input Frequency:50/60 Hz +/- 3 Hz (auto sensing)

Input Connections:
IEC-320 C20
Schuko CEE 7 / EU1-16P
British BS1363A

Cord Length:1.83 meters
Input voltage range for main operations:140 - 280V
Other Input Voltages:220, 240
Transfer Time:2-4 ms Batteries and Runtime
Battery Type:Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time:3 hour(s)
Replacement Battery:APCRBC143
RBC Quantity:1
Extended Run Options:APC Smart-UPS X 3000VA Rack/Tower LCD 200-240V Communications and Management
Interface Port(s):SmartSlot
Available SmartSlot Interface Quantity:1
Control panel:LED status display with On Line : On Battery : Replace Battery and Overload indicators, Multi-function LCD status and control console
Audible Alarm:Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO):Yes Surge Protection and Filtering
Surge energy rating:645 Joules
Filtering:Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 Conformance
Regulatory Approvals:C-tick, CE, CSA, EN 50091-1, EN 50091-2, EN 60950, FCC Part 15 Class A, GOST, IRAM, UL 1778, VDE

Sustainable Offer Status
RoHS:Compliant
REACH:REACH: Contains No SVHCs Item Dimension (L"xW"xH"):
13 x 24 x 25

Weight:
105 lb

Warranty Information:
3 years repair or replace (excluding battery) and 2 year for battery, optional on-site warranties available, optional extended warranties available
